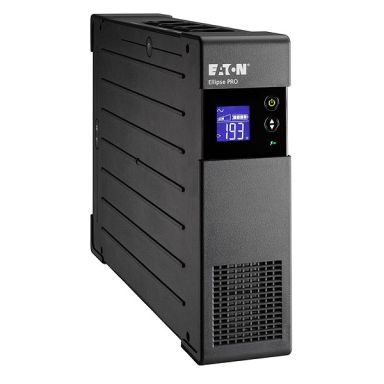

Ellipse PRO 1600 - USV - Wechselstrom 230 V - 1000 Watt - 1600 VA 9 Ah - USB
In Stock
|
£317.14
£380.57 (Inc. VAT)
Ellipse PRO 1600 - USV - Wechselstrom 230 V - 1000 Watt - 1600 VA 9 Ah - USB
Power
Output power
1000 W
Input operation voltage (min)
150 V
Input operation voltage (max)
285 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Emergency Power Off (EPO)
Yes
Output power capacity
1.6 kVA
Performance
UPS topology
Line-Interactive
LED indicators
Yes
Surge protection
Yes
Surge protection features
Fax, Modem, Network, Telephone
Features
Output frequency
50 Hz
UPS topology
Line-Interactive
Output power
1000 W
Input operation voltage (min)
150 V
Input operation voltage (max)
285 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge protection
Yes
Surge protection features
Fax, Modem, Network, Telephone
Emergency Power Off (EPO)
Yes
Output power capacity
1.6 kVA
Input frequency
50/60 Hz
Ports & interfaces
AC outlets quantity
8 AC outlet(s)
AC outlet types
Type F
Power plug
C14 coupler
USB 2.0 ports quantity
1
Modem (RJ-11) ports
1
Ethernet LAN (RJ-45) ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
9 min
Hot-swap battery
No
Cold start
Yes
Automatic battery test
Yes
Design
Rack capacity
2U
Form factor
Tower
LED indicators
Yes
Product colour
Black
Safety
IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Display type
LCD
Technical details
Output frequency
50 Hz
Harmonized System (HS) code
85078000
Weight & dimensions
Weight
11.3 kg
Width
82 mm
Height
275 mm
Depth
390 mm
Logistics data
Harmonized System (HS) code
85078000
Certificates
Safety
IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Other features
Nominal input voltage
230 V
