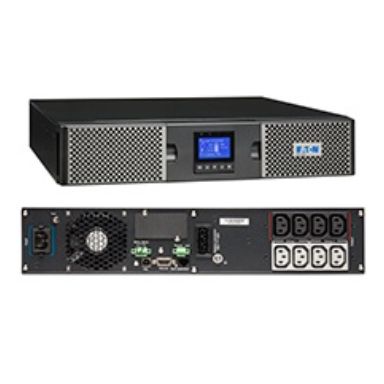

Eaton 9PX 1.5kVA uninterruptible power supply (UPS) Double-conversion (Online) 1500 VA 1500 W 8 AC outlet(s)
In Stock
|
£1197.71
£1437.25 (Inc. VAT)
Eaton 9PX 1.5kVA uninterruptible power supply (UPS) Double-conversion (Online) 1500 VA 1500 W 8 AC outlet(s)
Power
Output power
1500 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
92.50%
Power factor
1
Output power capacity
1.5 kVA
Performance
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
LED indicators
Yes
Power protection features
Battery discharge
Noise level
35 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
Output power
1500 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
92.50%
Power protection features
Battery discharge
Power factor
1
Noise level
35 dB
Output power capacity
1.5 kVA
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
USB 2.0 ports quantity
1
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
14 min
Typical backup time at full load
5 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Rack capacity
2U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Safety
IEC/EN 62040-1, UL 1778, CSA 22.2
Certification
IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Display type
LCD
Operational conditions
Operating temperature (T-T)
Technical details
Output frequency
50/60 Hz
Sustainability certificates
ENERGY STAR
Harmonized System (HS) code
85078000
Weight & dimensions
Weight
18.9 kg
Width
440 mm
Height
86.5 mm
Depth
450 mm
Packaging data
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
Management card included
No
Logistics data
Harmonized System (HS) code
85078000
Certificates
Safety
IEC/EN 62040-1, UL 1778, CSA 22.2
Certification
IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
