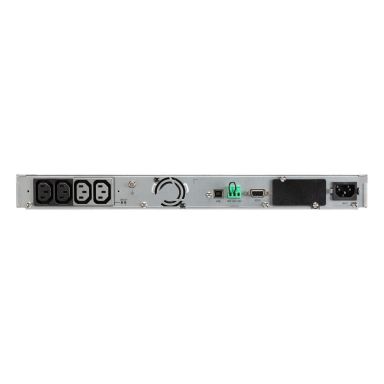

Eaton 5P 650i - Gen 2 - USV (Rack - einbaufähig) - Wechselstrom 200/208/220/230/240 V - 520 Watt - 6
In Stock
|
£384.36
£461.23 (Inc. VAT)
Eaton 5P 650i - Gen 2 - USV (Rack - einbaufähig) - Wechselstrom 200/208/220/230/240 V - 520 Watt - 6
Power
Output power
520 W
Input operation voltage (min)
160 V
Input operation voltage (max)
294 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
98%
Output power capacity
0.65 kVA
ECO mode
No
Performance
UPS topology
Line-Interactive
Waveform
Pure sine
Number of output phases
1
Number of input phases
1
Noise level
40 dB
Features
Output frequency
50/60 Hz
UPS topology
Line-Interactive
Waveform
Pure sine
Number of output phases
1
Number of input phases
1
Output power
520 W
Input operation voltage (min)
160 V
Input operation voltage (max)
294 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
98%
Noise level
40 dB
Output power capacity
0.65 kVA
ECO mode
No
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
AC outlets quantity
4 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
USB 2.0 ports quantity
1
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
9 min
Typical backup time at full load
2 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Rack capacity
1U
Form factor
Rackmount
Product colour
Black
Safety
IEC/EN 62040-1, UL 1778
Certification
IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance), CE, CB report (TUV)
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Technical details
Output frequency
50/60 Hz
Certificates
Certification
IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance), CE, CB report (TUV)
Safety
IEC/EN 62040-1, UL 1778
Packaging content
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
Safety regulation & standards
Safety
IEC/EN 62040-1, UL 1778
Weight & dimensions
Weight
8.6 kg
Width
438 mm
Height
43.2 mm
Depth
361 mm
Packaging data
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
Management card included
No
Other features
Input connection type
IEC C14
Nominal output voltage
230 V
Nominal input voltage
230 V
Mac compatibility
No
