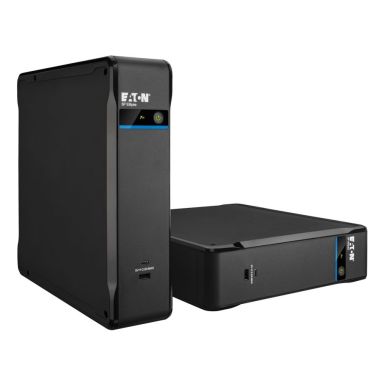

Eaton 3P Ellipse UPS uninterruptible power supply (UPS) Standby (Offline) 1.7 kVA 1040 W 8 AC outlet(s)
In Stock
|
£276.42
£331.70 (Inc. VAT)
Eaton 3P Ellipse UPS uninterruptible power supply (UPS) Standby (Offline) 1.7 kVA 1040 W 8 AC outlet(s)
Power
Output power factor
0.6
Output power
1040 W
Input operation voltage (min)
161 V
Input operation voltage (max)
284 V
Output operation voltage (min)
161 V
Output operation voltage (max)
284 V
Efficiency
97%
Output power capacity
1.7 kVA
Efficiency (ECO mode)
97%
Performance
UPS topology
Standby (Offline)
Waveform
Stepwise
Number of output phases
1
Number of input phases
1
Surge protection
Yes
Noise level
25 dB
Features
Output frequency
50/60 Hz
UPS topology
Standby (Offline)
Waveform
Stepwise
Number of output phases
1
Number of input phases
1
Output power factor
0.6
Output power
1040 W
Input operation voltage (min)
161 V
Input operation voltage (max)
284 V
Output operation voltage (min)
161 V
Output operation voltage (max)
284 V
Efficiency
97%
Surge protection
Yes
Noise level
25 dB
Output power capacity
1.7 kVA
Efficiency (ECO mode)
97%
Input frequency
46/70 Hz
Auto shut-off
Yes
Power consumption (average operating)
32.2 W
Package type
Box
Ports & interfaces
USB port
Yes
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
1
Battery
Number of batteries supported
2
Battery voltage
12 V
Battery capacity
9 Ah
Design
Form factor
Tower
Product colour
Black
Certification
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
CE
UKCA
Ukr
Cm
Control type
Buttons
Display type
LED
Operational conditions
Operating temperature (T-T)
Technical details
Output frequency
50/60 Hz
Compliance certificates
CB, CE, RoHS, WEEE
Certificates
Certification
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
CE
UKCA
Ukr
Cm
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
CB, CE, RoHS, WEEE
Packaging content
Quick installation guide
Yes
Cables included
USB cable
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Weight & dimensions
Package type
Box
Weight
7.8 kg
Width
81 mm
Height
305 mm
Depth
312 mm
Packaging data
Quick installation guide
Yes
Cables included
USB cable
Package type
Box
Other features
Input connection type
C14
Relative humidity
0 - 95%
Nominal input voltage
220-240 V
