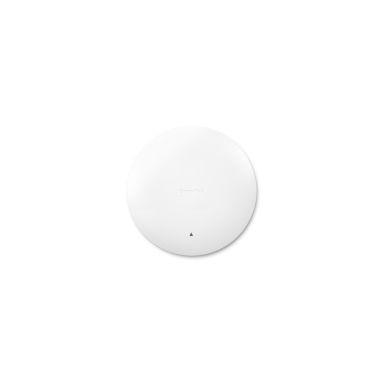

Draytek VAP962C-K VigorAP 962C Wireless 6 AX3000 Ceiling Mounted Mesh Access Point
In Stock
|
£118.77
£142.52 (Inc. VAT)
Draytek VAP962C-K VigorAP 962C Wireless 6 AX3000 Ceiling Mounted Mesh Access Point
Data transmission
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Maximum data transfer rate
3000 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wireless isolation
Yes
Syslog
Yes
Reset button
Yes
Firmware upgradeable
Yes
Spread spectrum method
OFDMA
Frequency band
2.4 - 5 GHz
VLAN support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Channels quantity
140 channels
Channel bandwidth
160 MHz
Maximum data transfer rate
3000 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Wireless LAN features
Frequency band
2.4 - 5 GHz
Channels quantity
140 channels
Network
Spread spectrum method
OFDMA
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at
Bandwidth
Channel bandwidth
160 MHz
Management features
VLAN support
Yes
Syslog
Yes
Firmware upgradeable
Yes
Command-line interface (CLI)
Yes
Features
6 GHz
No
2.4 GHz
Yes
5 GHz
Yes
Wireless isolation
Yes
Spread spectrum method
OFDMA
Frequency band
2.4 - 5 GHz
VLAN support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Channels quantity
140 channels
Channel bandwidth
160 MHz
Maximum data transfer rate
3000 Mbit/s
Fast roaming
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
2402 Mbit/s
Virtual LAN features
Management VLAN
BeamForming
Yes
Security
Number of SSID supported
8
Security algorithms
802.1x RADIUS, EAP-TLS, HTTPS, OWE, PEAP, SNMP, WEP, WMM, WPA, WPA2, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enterprise, WPA3-Personal, WPS
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Protocols
DHCP server
Yes
Ports & interfaces
RS-232 interface
No
WAN connection
Ethernet (RJ-45), Wi-Fi
USB 2.0 ports quantity
0
Ethernet LAN (RJ-45) ports
1
DC-in jack
No
Power
Power consumption (max)
12 W
Power over Ethernet (PoE)
Yes
AC input voltage
5 - 12 V
Power over Ethernet (PoE) type supported
Passive PoE
DC voltage range
12 V
Design
Placement
Ceiling, Wall
Product colour
White
Reset button
Yes
Antenna
Antenna type
Internal
Antenna gain level (max)
4.9 dBi
Technical details
Reset button
Yes
Firmware upgradeable
Yes
Software
Fast roaming
Yes
Weight & dimensions
Width
190 mm
Depth
190 mm
Weight
520 g
Height
30 mm
Packaging data
Quick start guide
Yes
Mounting kit
Yes
Packaging content
Quick start guide
Yes
Mounting kit
Yes
Quantity per pack
1 pc(s)
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Logistics data
Quantity per pack
1 pc(s)
