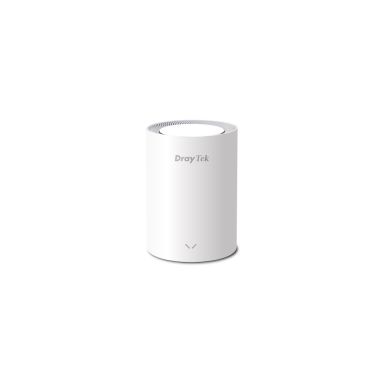

DrayTek VigorAP 805 Mesh AX3000 Wireless Access Point, 2.5GbE Uplink, additional 1GbE for Wired Conn
In Stock
|
£75.90
£91.08 (Inc. VAT)
DrayTek VigorAP 805 Mesh AX3000 Wireless Access Point, 2.5GbE Uplink, additional 1GbE for Wired Conn
Data transmission
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Maximum data transfer rate
3000 Mbit/s
Performance
Full duplex
Yes
2.4 GHz
Yes
5 GHz
Yes
Wireless isolation
Yes
Automatic channel selection
Yes
Auto Wireless Distribution System (WDS)
Yes
Syslog
Yes
Firmware upgradeable
Yes
Spread spectrum method
OFDMA
Web-based management
Yes
VLAN support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Management platform
Draytek vigorACS
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Maximum data transfer rate
3000 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Wi-Fi roaming
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Smart mesh system
Yes
Cloud services supported
Draytek VigorACS
Operating system installed
DrayOS
Network
Spread spectrum method
OFDMA
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Management features
VLAN support
Yes
Syslog
Yes
Firmware upgradeable
Yes
Web-based management
Yes
Management platform
Draytek vigorACS
Batch upgrade
Yes
Local AP management
Telnet
Command-line interface (CLI)
Yes
Features
Full duplex
Yes
2.4 GHz
Yes
5 GHz
Yes
Wireless isolation
Yes
Automatic channel selection
Yes
Spread spectrum method
OFDMA
VLAN support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Maximum data transfer rate
3000 Mbit/s
Fast roaming
Yes
Dynamic Frequency Selection (DFS)
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Wi-Fi roaming
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Smart mesh system
Yes
Cloud services supported
Draytek VigorACS
Maximum data transfer rate (2.4 GHz)
2400 Mbit/s
Maximum data transfer rate (5 GHz)
600 Mbit/s
Fit AP mode features
802.11k & 802.11v smart roaming, Mesh networking, WDS zero-configuration deployment, Wireless distribution system (WDS)
BeamForming
Yes
Operating system installed
DrayOS
Security
Number of SSID supported
16
Auto Wireless Distribution System (WDS)
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3, SSH, SSID, WPA, WPA2, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enterprise, WPS
MAC address filtering
Yes
Access Control List (ACL)
Yes
Service Set Identifier (SSID) features
Hidden SSID, Multiple SSIDs, SSID broadcast, SSID broadcast on/off
Protocols
Management protocols
TR-069
DHCP server
Yes
DHCP client
Yes
IPv4 & IPv6 features
Dual stack IPv4/IPv6
Ports & interfaces
Interface
2
DC-in jack
Yes
Power
Power consumption (max)
12 W
Power over Ethernet (PoE)
No
Design
Housing material
Plastic
Placement
Desk, Table, Shelf
Product colour
White
LED indicators
LAN, System
Antenna
Antenna type
Internal
Antenna gain level (max)
4.9 dBi
Technical details
Firmware upgradeable
Yes
Rack mounting
No
PSTI certified
Yes
Compliance certificates
CE, UKCA
Certificates
PSTI certified
Yes
Compliance certificates
CE, UKCA
Indication
LED indicators
LAN, System
Software
Access Control List (ACL)
Yes
Fast roaming
Yes
Dynamic Frequency Selection (DFS)
Yes
Batch upgrade
Yes
Local AP management
Telnet
Weight & dimensions
Width
110 mm
Depth
110 mm
Weight
405 g
Height
153 mm
Packaging data
Quick start guide
Yes
Cables included
LAN (RJ-45)
AC adapter included
Yes
Packaging content
Quick start guide
Yes
Cables included
LAN (RJ-45)
AC adapter included
Yes
Quantity per pack
1 pc(s)
Other features
Rack mounting
No
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Logistics data
Quantity per pack
1 pc(s)
