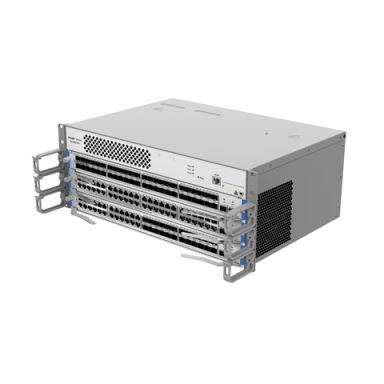

Ruijie Networks RG-NBS7003 network switch Managed L3 Gigabit Ethernet (10/100/1000) 4U Grey
In Stock
|
Call For Price
(0808 189 1246)
Ruijie Networks RG-NBS7003 network switch Managed L3 Gigabit Ethernet (10/100/1000) 4U Grey
Network
IGMP snooping
Yes
VLAN support
Yes
Port mirroring
Yes
Number of VLANs
4094
Link aggregation
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Broadcast storm control
Yes
10G support
Yes
Virtual LAN features
Voice VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Virtual LAN features
Voice VLAN
Data transmission
Number of VLANs
4094
Jumbo frames
9216
Packet buffer memory
16 MB
MAC address table
32000 entries
Switching capacity
480 Gbit/s
Jumbo frames support
Yes
Forwarding rate
360 Mpps
Performance
Packet buffer memory
16 MB
Mean time between failures (MTBF)
400 h
Technical details
Form factor
4U
Product colour
Grey
Mean time between failures (MTBF)
400 h
Rack mounting
Yes
Warranty period
5 year(s)
Power over Ethernet (PoE)
Power protection features
Surge and inrush
Power over Ethernet (PoE)
No
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Cloud-managed
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Security
MAC address filtering
Yes
IGMP snooping
Yes
DHCP features
DHCP client, DHCP server, DHCP snooping
Memory
Packet buffer memory
16 MB
Design
Form factor
4U
Product colour
Grey
Rack mounting
Yes
Airflow direction
Side-to-side airflow
Number of fans
1 fan(s)
Power
Power supply included
Yes
Power protection features
Surge and inrush
Power consumption (typical)
50 W
Power source
AC
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
442 mm
Depth
313 mm
Height
175 mm
Packaging data
Package width
442 mm
Package depth
313 mm
Package height
175 mm
Package weight
9.6 kg
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
