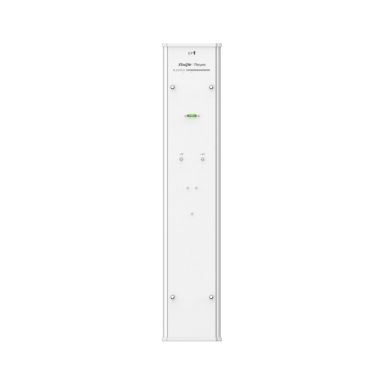

Ruijie Networks RG-ANT20S-90 network antenna Panel antenna 20 dBi
In Stock
|
Call For Price
(0808 189 1246)
Ruijie Networks RG-ANT20S-90 network antenna Panel antenna 20 dBi
Performance
Antenna gain level (max)
20 dBi
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency band
5.15 - 5.85 GHz
Vertical beam width
7°
Horizontal beam width
90°
Features
Survival wind speed
220.32 km/h
International Protection (IP) code
IP55
Antenna type
Panel antenna
Product colour
White
Maximum outdoor range
10000 m
Antenna gain level (max)
20 dBi
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency band
5.15 - 5.85 GHz
Vertical beam width
7°
Horizontal beam width
90°
Operational conditions
Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Weight
4.5 kg
Width
694 mm
Depth
139.9 mm
Height
48.9 mm
Package width
750 mm
Package depth
195 mm
Package height
165 mm
Packaging data
Package width
750 mm
Package depth
195 mm
Package height
165 mm
Technical details
Antenna gain level (max)
20 dBi
Frequency band
5.15 - 5.85 GHz
Antenna type
Panel antenna
Vertical beam width
7°
Horizontal beam width
90°
Network
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Colour
Product colour
White
