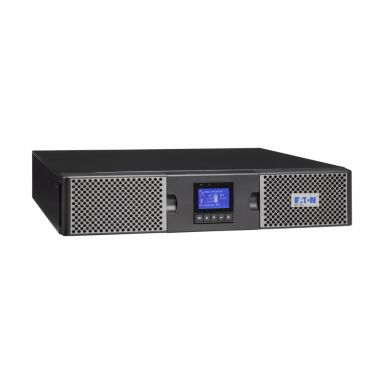

Eaton 9PX1000IRTNBS uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 1000 W 8 AC outlet(s)
In Stock
|
£1233.43
£1480.12 (Inc. VAT)
Eaton 9PX1000IRTNBS uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 1000 W 8 AC outlet(s)
Power
Output power factor
1
Input power factor
0.99
Output power
1000 W
Input operation voltage (min)
100 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
91.50%
Power factor
1
Output voltage Total Harmonic Distortion (THD)
3%
Output power capacity
1 kVA
Efficiency (ECO mode)
97.50%
ECO mode
Yes
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of output phases
1
Number of input phases
1
Power protection features
Overdischarge
Noise level
35 dB
Features
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of output phases
1
Number of input phases
1
Output power factor
1
Input power factor
0.99
Output power
1000 W
Input operation voltage (min)
100 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
91.50%
Power protection features
Overdischarge
Power factor
1
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
35 dB
Output power capacity
1 kVA
Efficiency (ECO mode)
97.50%
ECO mode
Yes
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
USB port type
USB Type-B
Battery
Number of batteries supported
4
Battery voltage
12 V
Battery capacity
7 Ah
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at full load
6 min
Automatic battery test
Yes
Design
Form factor
Rackmount/Tower
Product colour
Black, Silver
Certification
CISPR22 B
CSA 22.2
TUV
cULus
FCC 15 / B
EAC
UL 1778
IEC/EN 62040-1
IEC/EN 62040-2
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 96%
Operating altitude
0 - 3000 m
Technical details
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR
Compliance certificates
CE
Weight & dimensions
Weight
17.9 kg
Width
550 mm
Height
240 mm
Depth
580 mm
Packaging data
Quick installation guide
Yes
Cables included
Input power cable, Serial, USB cable
Rack mount kit
Yes
Certificates
Certification
CISPR22 B
CSA 22.2
TUV
cULus
FCC 15 / B
EAC
UL 1778
IEC/EN 62040-1
IEC/EN 62040-2
Packaging content
Quick installation guide
Yes
Cables included
Input power cable, Serial, USB cable
Rack mount kit
Yes
