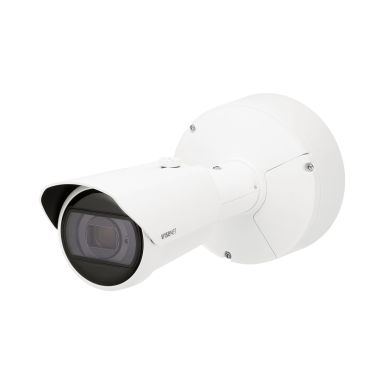

HANWHA HANWHA XNO-6123R 2M 12X IR BULLET
In Stock
|
£708.00
£849.60 (Inc. VAT)
HANWHA HANWHA XNO-6123R 2M 12X IR BULLET
Performance
Antenna type
Internal
Languages support
Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Turkish
Type
IP security camera
Connectivity technology
Wired
PTZ control
Yes
Placement supported
Outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Alarm input/output
Yes
Certification
IP66/67, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9)
Dynamic range
150 dB
Design
IK code
IK10
Form factor
Bullet
Product colour
White
Mounting type
Ceiling/Wall/Pole
International Protection (IP) code
IP66, IP67
Housing material
Aluminium
Camera
Minimum illumination
0.03 lx
White balance
ATW, AWC, Indoor, Manual, Outdoor
Angle of rotation
270°
Camera shutter speed
2 - 1/12.000 s
Vertical field of view (optical module)
33°
Horizontal field of view (optical module)
55°
Image sensor
Sensor type
CMOS
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Lens system
Number of lenses
1
Maximum aperture number
3
Auto focus
Yes
Recognize distance (wide)
14.8 m
Recognize distance (tele)
175.9 m
Observe distance (wide)
29.5 m
Observe distance (tele)
351.8 m
Identify distance (wide)
7.4 m
Identify distance (tele)
88 m
Detect distance (wide)
73.8 m
Detect distance (tele)
879.5 m
Zoom capability
Yes
Optical zoom
12x
Digital zoom
32x
Focal length range
5.2 - 62.4 mm
Night vision
Night vision
Yes
Night vision distance
90 m
LED type
IR
Video
Privacy masking
Yes
Flip & mirror
Yes
Image stabilizer
Yes
Gain control type
Manual
Highlight Compensation (HLC)
Yes
Bit rate control
Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Back Light Compensation (BLC)
Yes
Noise reduction technology
Smart Super Noise Reduction V (SSNR V), WiseNR â
¡
Video compression formats
H.264, H.265, M-JPEG
Maximum resolution
1920 x 1080 pixels
Video formats supported
H.264, H.265, M-JPEG
Supported graphics resolutions
320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200, 1920 x 1080 (HD 1080)
Frame rate
120 fps
Video streaming
Yes
Total megapixels
2 MP
Audio
Sample rate
16000 kHz
Audio formats supported
AAC-LC, ADPCM, G.711 μ-law, G.726
Network
Bluetooth
No
Ethernet interface type
Gigabit Ethernet
Streaming method
Multicast, Unicast
Ethernet LAN
Yes
Wi-Fi
No
Supported network protocols
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Storage
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
SD, SDHC, SDXC
Flash memory
512 MB
RAM capacity
2000 MB
Ports & interfaces
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Alert notification type
E-mail
Video motion detection
Yes
Security algorithms
802.1x RADIUS, EAP-LEAP, EAP-PEAP, EAP-TLS, FIPS 140-2, HTTPS, MSCHAPv2
IP address filtering
Yes
HTTPS encryption
Yes
Digest authentication
Yes
Network access storage (NAS)
Yes
Power
Power source type
DC, PoE
Power consumption (max)
16.5 W
Power consumption (Power over Ethernet (PoE))
15.5 W
Power over Ethernet (PoE)
Yes
Power consumption (typical)
13.1 W
DC output voltage
12
DC output current
0.05 A
Certificates
Certification
IP66/67, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9)
Operational conditions
Operating temperature (T-T)
-40 - 60 °C
Storage temperature (T-T)
-50 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Length
298.4 mm
Diameter
9.34 cm
Weight
2.3 kg
Sustainability
Compliance certificates
CE, EAC, Federal Communications Commission (FCC), ICES, RCM, UKCA, UL, VCCI
Packaging content
Number of cameras
1
Memory card included
SD
Technical details
Iris
Yes
Technical features
LDC support
Compliance certificates
CE, EAC, Federal Communications Commission (FCC), ICES, RCM, UKCA, UL, VCCI
Other features
Video compression formats
H.264, H.265, M-JPEG
Audio output
Line out
