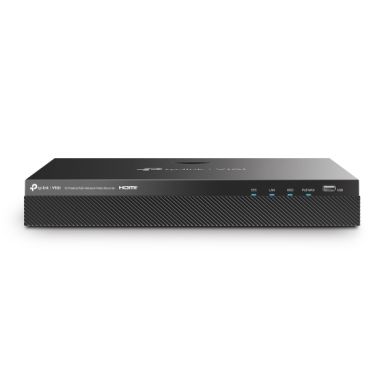

TP-Link VIGI NVR2016H-16MP network video recorder Black
In Stock
|
£459.91
£551.89 (Inc. VAT)
TP-Link VIGI NVR2016H-16MP network video recorder Black
Performance
Video input channels
16 channels
Maximum resolution
3840 x 2160 pixels
Video formats supported
H.264, H.264+, H.265, H.265+
Supported network protocols
UPnP (Plug and Play), NTP (Network Timing)
Audio formats supported
G.711 A-law, G.711 μ-law, G.726
Playback modes
Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Playback controls
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Recording modes
Manual, Schedule
Maximum frame rate
30 fps
Supported resolutions
HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz
VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz
Video motion detection
Yes
Networking standards
IEEE 802.3af, IEEE 802.3at
Number of simultaneously playbacked channels
16 channels
Video recording modes
720p, 1080p
Output bandwidth
60 Mbit/s
Input bandwidth
80 Mbit/s
Wireless LAN features
Wi-Fi
No
Hard drive
Number of HDDs supported
2
Maximum storage capacity
10 TB
HDD interface
SATA
Number of HDDs installed
0
HDD capacity
0 GB
Storage
Number of HDDs supported
2
Maximum storage capacity
10 TB
HDD interface
SATA
Number of HDDs installed
0
HDD capacity
0 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power over Ethernet (PoE)
Yes
VGA (D-Sub) output ports
1
USB 2.0 ports quantity
2
Supported network protocols
UPnP (Plug and Play), NTP (Network Timing)
eSATA
Yes
DC-in jack
Yes
Line-in
Yes
Audio output
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Power over Ethernet (PoE) ports quantity
16
eSATA ports quantity
1
Internal SATA ports quantity
2
Networking standards
IEEE 802.3af, IEEE 802.3at
HDMI ports quantity
1
Features
Certification
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Reset button
Yes
Product colour
Black
Power
Output voltage
53.5 V
Output current
2.43 A
Power consumption (max)
40 W
Total Power over Ethernet (PoE) budget
140 W
Operational conditions
Operating temperature (T-T)
-10 - 55 °C
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Weight & dimensions
Width
330 mm
Depth
285 mm
Height
45 mm
Weight
2.1 kg
Package weight
4.1 kg
Packaging content
Quick installation guide
Yes
Cables included
AC
AC adapter included
Yes
