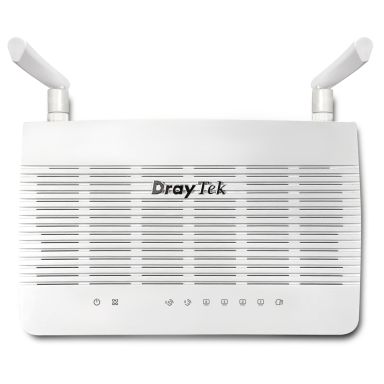

DrayTek Vigor 2136ax AX3000 Wireless Router with VPN and 2.5GbE WAN and LAN ports
In Stock
|
£138.03
£165.64 (Inc. VAT)
DrayTek Vigor 2136ax AX3000 Wireless Router with VPN and 2.5GbE WAN and LAN ports
Ethernet LAN features
Ethernet WAN
Yes
Ethernet LAN interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Full duplex
Yes
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
DSL features
DSL WAN
No
Mobile network
SIM card slot
No
3G/4G USB modem compatibility
Yes
Network
Wake-on-LAN ready
Yes
Routing protocols
BGP, OSPF, RIP
Network address translation (NAT)
Yes
Guest access
Yes
Ethernet LAN interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
VPN tunnels quantity
4
VPN support
IPsec IKEv1, IKEv2, IKEv2 EAP, IPsec-XAuth, OpenVPN, WireGuard
Port forwarding
Yes
Networking standards
IEEE 802.1Q
Full duplex
Yes
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Port triggering
Yes
Wireless Distribution System (WDS) bridge
Yes
VPN server
yes
Static route
Yes
SSID-based VLAN assignment
Yes
Multicast support
Yes
Dynamic DNS (DDNS)
Yes
Port mirroring
Yes
VPN throughput
390 Mbit/s
Management features
Universal Plug and Play (UPnP)
Yes
WPS push button
Yes
Web-based management
Yes
Wake-on-LAN ready
Yes
Reset button
Yes
Quality of Service (QoS) support
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Bandwidth control
Yes
Intelligent Mesh technology
Yes
MU-MIMO technology
Yes
MIMO
Yes
Security
VPN tunnels quantity
4
VPN support
IPsec IKEv1, IKEv2, IKEv2 EAP, IPsec-XAuth, OpenVPN, WireGuard
URL filtering
Yes
System event log
Yes
Security algorithms
3DES, AES, HTTPS, SSH, SSID, TLS, WPA2, WPA2-PSK, WPA2-Personal, WPA2-RADIUS, WPA3, WPA3-Personal
Network address translation (NAT)
Yes
MAC address filtering
Yes
IP address filtering
Yes
Guest access
Yes
Firewall
Yes
DoS attack prevention
Yes
Schedule access
Yes
Parental control
Yes
Stateful Packet Inspection (SPI)
Yes
Access Control List (ACL)
Yes
DDoS protection
Yes
WAN connection
Ethernet WAN
Yes
DSL WAN
No
SIM card slot
No
3G/4G USB modem compatibility
Yes
WAN connection type
RJ-45
Wireless LAN features
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)
3000 Mbit/s
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)
574 Mbit/s
WLAN data transfer rate (second band)
2402 Mbit/s
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ports & interfaces
USB port
Yes
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
4
DC-in jack
Yes
Protocols
Universal Plug and Play (UPnP)
Yes
Routing protocols
BGP, OSPF, RIP
DHCP server
Yes
DHCP client
Yes
Design
Product type
Desktop/pole router
Wall mountable
Yes
On/off switch
Yes
LED indicators
Activity, LAN, Power, USB, WLAN
Housing material
Plastic
Indication light
Yes
Certificates
PSTI certified
Yes
Packaging content
Cables included
LAN (RJ-45)
AC adapter included
Yes
Antenna included
Yes
Packaging content
Antenna
Antenna design
External
Detachable antenna(s)
Yes
Antenna gain level (max)
2.7 dBi
Antenna connector type
RP-SMA
Antenna direction type
Omni-directional
Antenna type
2x2
Power
Power over Ethernet (PoE)
No
Power consumption (typical)
18 W
Operational conditions
Storage temperature (T-T)
Operating temperature (T-T)
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
207 mm
Weight
508 g
Height
42 mm
Depth
131 mm
Packaging data
Cables included
LAN (RJ-45)
AC adapter included
Yes
Antenna included
Yes
Technical details
PSTI certified
Yes
