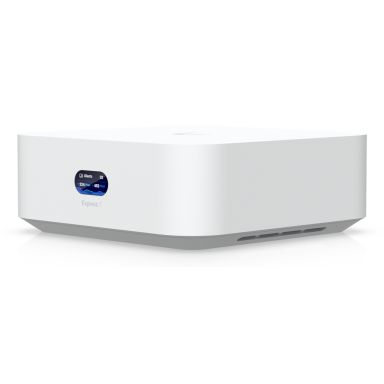

Ubiquiti UniFi Express 7 gateway/controller 10, 100, 1000, 2500, 10000 Mbit/s
In Stock
|
£147.71
£177.25 (Inc. VAT)
Ubiquiti UniFi Express 7 gateway/controller 10, 100, 1000, 2500, 10000 Mbit/s
Design
LED indicators
Status
Product colour
White
Enclosure material
Polycarbonate (PC)
Features
Antenna type
Internal
Antenna gain level (max)
6 dBi
Antennas quantity
4
Built-in processor
Yes
Processor frequency
1500 MHz
Number of processors installed
1
Performance
Built-in processor
Yes
Processor frequency
1500 MHz
Number of processors installed
1
Internal memory
3000 MB
Display type
LCM
Control display unit
Yes
Processor model
Cortex-A53
Processor manufacturer
ARM
Processor family
ARM Cortex
Product colour
White
Enclosure material
Polycarbonate (PC)
Protocols
DHCP server
Yes
Routing protocols
OSPF
Network
Networking standards
IEEE 802.1Q
Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
Frequency band
2.4, 5, 6 GHz
WLAN data transfer rates supported
1,2,5.5,6,6.5,9,11,12,18,24,36,48,54,300 Mbit/s
Wi-Fi
Yes
Wireless connection
Yes
Data transfer rate
5.7 Gbit/s
Load balancing
Yes
Bluetooth
Yes
Security
VLAN support
Yes
Security algorithms
802.1x RADIUS, IPSec, PPSK, TLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Firewall security
Yes
Ports & interfaces
WAN connection
Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports
2
Management features
Reset button
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
Power
Input voltage
100 - 240 V
Input current
5:00 AM
Power consumption (max)
22 W
Electromagnetic (EMP) protection
Yes
Electromagnetic (EMP) protection (air)
8 kV
Electromagnetic (EMP) protection (contact)
4 kV
Weight & dimensions
Weight
422 g
Width
117 mm
Height
42.5 mm
Depth
117 mm
Packaging content
Cables included
LAN (RJ-45), Power
AC adapter included
Yes
Operational conditions
Operating temperature (T-T)
-10 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Technical details
Built-in processor
Yes
Antenna type
Internal
WLAN data transfer rates supported
1,2,5.5,6,6.5,9,11,12,18,24,36,48,54,300 Mbit/s
Wi-Fi
Yes
Wireless connection
Yes
Processor frequency
1500 MHz
Number of processors installed
1
Antenna gain level (max)
6 dBi
AC adapter included
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators
Status
Memory
Internal memory
3000 MB
Display
Display type
LCM
Display diagonal
2.44 cm (0.96")
Control display unit
Yes
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)
Antenna
Antenna type
Internal
Antenna gain level (max)
6 dBi
Antennas quantity
4
