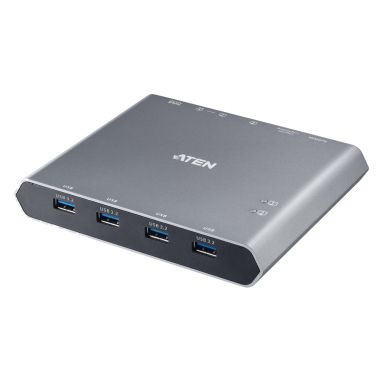

ATEN 2-Port 4K USB-C KVM Dock Switch PD100W

DisplayPorts quantity

1

Number of computers controlled

2

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

DC-in jack

Yes

USB hub

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

4

USB Type-C ports quantity

3

Data transfer rate (max)

5 Gbit/s

HD type

4K Ultra HD

Video bandwidth

60 Hz

Plug and Play

Yes

Maximum resolution

3840 x 2160 pixels

Product colour

Silver

Plug and Play

Yes

LED indicators

Yes

USB hub

Yes

Wired remote switch

Yes

Product colour

Silver

LED indicators

Yes

Housing material

Aluminium

Country of origin

Taiwan

Built-in display

No

Input current

3:00 AM

Power source

DC

USB Power Delivery up to

100 W

USB Power Delivery revision

3

USB Power Delivery (USB PD)

Yes

Input voltage

12 V

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64

Mac operating systems supported

Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Other operating systems supported

Android

HD type

4K Ultra HD

Video bandwidth

60 Hz

Maximum resolution

3840 x 2160 pixels

Country of origin

Taiwan

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Width

119 mm

Depth

143 mm

Height

23.8 mm

Weight

350 g

Package volume

1982.18 cm³

Package width

62 mm

Package depth

283 mm

Package height

173 mm

Package weight

1.01 kg

Package volume

1982.18 cm³

Package width

62 mm

Package depth

283 mm

Package height

173 mm

Package weight

1.01 kg

Cables included

USB Type-C

Manual

Yes

AC adapter included

Yes

Remote control included

Yes

Country of origin

Taiwan

Master (outer) case width

300 mm

Master (outer) case length

336 mm

Master (outer) case height

194 mm

Master (outer) case gross weight

5.43 kg

Master (outer) case volume

19538.62 cm³

Master (outer) case net weight

4.25 kg
