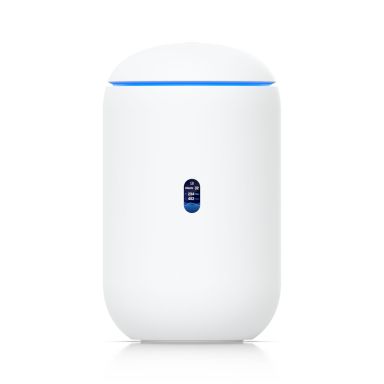

Ubiquiti UDR7 UniFi Dream Router 7 Combined 2.5 GBE Switch
In Stock
|
£205.90
£247.08 (Inc. VAT)
Ubiquiti UDR7 UniFi Dream Router 7 Combined 2.5 GBE Switch
Ethernet LAN features
Ethernet WAN
Yes
Ethernet LAN interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN data rates
2500 Mbit/s
DSL features
DSL WAN
No
Mobile network
SIM card slot
No
3G/4G USB modem compatibility
No
Network
Routing protocols
OSPF
MAC address table
2000 entries
Ethernet LAN interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Networking standards
IEEE 802.1Q
Ethernet LAN data rates
2500 Mbit/s
VPN server
Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP
Policy-based routing
Yes
Multicast support
Yes
Load balancing system
Yes
Maximum coverage
160 m²
Maximum Tx power (5 GHz)
26 dBmW
Maximum Tx power (2.4 GHz)
23 dBmW
Performance
Processor frequency
1500 MHz
Processor cores
4
Compatible memory cards
MicroSD (TransFlash)
Built-in processor
Yes
Internal memory
3000 MB
Memory card slot(s)
Yes
Processor architecture
ARM Cortex-A53
Packaging content
Number of products included
1 pc(s)
Manual
Yes
Cables included
AC
WAN connection
Ethernet WAN
Yes
DSL WAN
No
SIM card slot
No
3G/4G USB modem compatibility
No
Wireless LAN features
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
WLAN data transfer rate (max)
5700 Mbit/s
Wi-Fi band
Tri-band (2.4 GHz / 5 GHz / 6 GHz)
WLAN data transfer rate (first band)
688 Mbit/s
WLAN data transfer rate (second band)
4300 Mbit/s
WLAN data transfer rate (third band)
5700 Mbit/s
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ports & interfaces
USB port
No
Ethernet LAN (RJ-45) ports
4
Compatible memory cards
MicroSD (TransFlash)
Memory card slot(s)
Yes
Fiber optic connector
SFP+
Management features
Web-based management
Yes
Reset button
Yes
Quality of Service (QoS) support
Yes
MU-MIMO technology
Yes
MIMO
Yes
Security
Security algorithms
PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
MAC address table
2000 entries
Firewall
Yes
Filtering
Yes
Protocols
Routing protocols
OSPF
DHCP server
Yes
Design
Product type
Tabletop router
LED indicators
Status
Housing material
Polycarbonate (PC)
Product colour
White
Display type
LCM
Built-in display
Yes
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)
Other features
Internal memory
3000 MB
Antenna
Antenna design
Internal
Antenna gain level (max)
7 dBi
Features
Processor frequency
1500 MHz
Processor cores
4
Built-in processor
Yes
Internal memory
3000 MB
Processor architecture
ARM Cortex-A53
Bluetooth
Yes
Number of simultaneously connected devices (max)
300
Power
Power supply
50 W
Power source type
AC, PoE
Power over Ethernet (PoE)
Yes
Power consumption (typical)
26 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power over Ethernet (PoE) voltage
57 V
Operational conditions
Operating temperature (T-T)
-10 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
110 mm
Weight
1.1 kg
Height
184.1 mm
Depth
110 mm
Packaging data
Manual
Yes
Cables included
AC
Number of products included
1 pc(s)
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)
