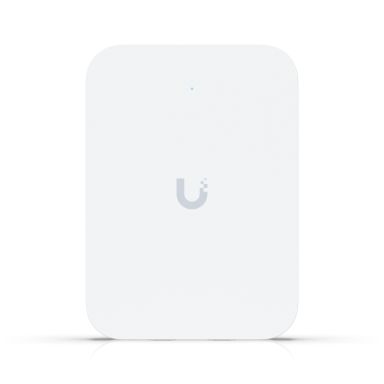

Ubiquiti U7 In-Wall 4300 Mbit/s White Power over Ethernet
In Stock
|
£105.53
£126.64 (Inc. VAT)
Ubiquiti U7 In-Wall 4300 Mbit/s White Power over Ethernet
Data transmission
Ethernet LAN data rates
2500 Mbit/s
Maximum data transfer rate
4300 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Reset button
Yes
Frequency band
2.4 - 5 GHz
Number of users
200 user(s)
VLAN support
Yes
Networking standards
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates
2500 Mbit/s
Maximum data transfer rate
4300 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
Wireless LAN features
Frequency band
2.4 - 5 GHz
Network
Number of users
200 user(s)
Networking standards
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Management features
VLAN support
Yes
Access point management
Wi-Fi schedule
Features
6 GHz
No
2.4 GHz
Yes
5 GHz
Yes
Frequency band
2.4 - 5 GHz
Number of users
200 user(s)
VLAN support
Yes
Networking standards
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates
2500 Mbit/s
Maximum data transfer rate
4300 Mbit/s
Fast roaming
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
Maximum data transfer rate (2.4 GHz)
688 Mbit/s
Maximum data transfer rate (5 GHz)
4300 Mbit/s
Fit AP mode features
Hotspot 2.0
Spatial streams
4
Coverage area
115 m²
Wireless meshing
Yes
Maximum Tx power (2.4 GHz)
23 dBmW
Maximum Tx power (5 GHz)
24 dBmW
Security
Security algorithms
PPSK
Ports & interfaces
Ethernet LAN (RJ-45) ports
3
Power
Power consumption (max)
13 W
Power over Ethernet (PoE)
Yes
DC voltage range
42.5 - 57 V
Design
Housing material
Aluminium, Polycarbonate (PC)
Placement
Wall
Product colour
White
Reset button
Yes
LED indicators
Status
Antenna
Antenna type
Internal
Antennas quantity
4
Antenna gain level (max)
8 dBi
Technical details
Reset button
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators
Status
Software
Fast roaming
Yes
Weight & dimensions
Width
98.7 mm
Depth
30.2 mm
Weight
400 g
Height
137 mm
Packaging data
Mounting kit
Yes
Packaging content
Mounting kit
Yes
Quantity per pack
1 pc(s)
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-30 - 40 °C
Logistics data
Quantity per pack
1 pc(s)
