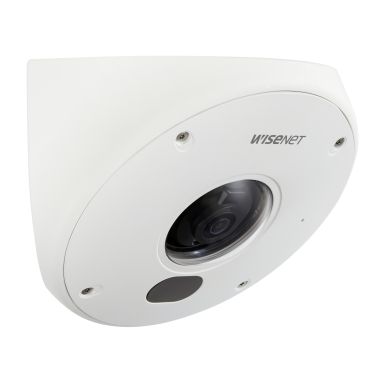

Hanwha TNV-7010RC security camera IP security camera Outdoor 2048 x 1536 pixels Ceiling/wall
In Stock
|
£594.95
£713.94 (Inc. VAT)
Hanwha TNV-7010RC security camera IP security camera Outdoor 2048 x 1536 pixels Ceiling/wall
Performance
Number of languages
17
Languages support
Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish
Type
IP security camera
Connectivity technology
Wired
PTZ control
Yes
Placement supported
Outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Alarm input/output
Yes
Design
IK code
IK10
Product colour
White
Mounting type
Ceiling/wall
International Protection (IP) code
IP66
Housing material
Aluminium
Camera
Tilt angle range
-15 - 15°
White balance
ATW, AWC, Indoor, Manual, Outdoor
Camera shutter type
Electronic
Camera shutter speed
2 - 1/12000 s
Camera tilt control
Yes
Lens viewing angle, horizontal
102°
Lens viewing angle, vertical
75°
Lens viewing angle, diagonal
129°
Progressive scan
Yes
Image sensor
Number of effective pixels (H x V)
2065 x 1553 pixels
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
2
Closest focusing distance
0.4 m
Focus
Manual
Zoom capability
Yes
Digital zoom
24x
Fixed focal length
2.8 mm
Night vision
Night vision
Yes
Night vision distance
10 m
LED type
IR
Infra-red wavelength
940 nm
Video
Noise reduction
Yes
Privacy masking
Yes
Flip & mirror
Yes
Image stabilizer
Yes
Highlight Compensation (HLC)
Yes
Bit rate control
Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Back Light Compensation (BLC)
Yes
Video compression formats
AVC, H.264, H.265, M-JPEG, MPEG4
Maximum resolution
2048 x 1536 pixels
Supported graphics resolutions
320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Video streaming
Yes
Total megapixels
3.2 MP
Audio
Voice codecs
G.711ulaw, G.726
Signal-to-Noise Ratio (SNR)
50 dB
Built-in microphone
Yes
Audio system
2-way
Audio formats supported
AAC
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1x, IEEE 802.3af
Quality of Service (QoS) support
Yes
Streaming method
Multicast, Unicast
Ethernet LAN
Yes
Wi-Fi
No
Supported network protocols
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Storage
Maximum memory card size
256 GB
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Ports & interfaces
Microphone in
Yes
Headphone outputs
1
Ethernet LAN (RJ-45) ports
1
Composite video out
1
Connectivity technology
Wired
Security
Intelligent Video Surveillance (IVS) system features
Defocus, Face detection
Video motion detection
Yes
Security algorithms
EAP-PEAP, EAP-TLS, HTTPS, SSL/TLS
Management features
Web-based management
Yes
Power
Power source type
DC, PoE
Power consumption (max)
11 W
Power consumption (Power over Ethernet (PoE))
12 W
DC output voltage
12
Operational conditions
Operating temperature (T-T)
-10 - 55 °C
Storage temperature (T-T)
-50 - 60 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 90%
System requirements
Windows operating systems supported
Windows 10, Windows 7, Windows 8.1
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Weight & dimensions
Width
236 mm
Depth
126.5 mm
Height
236 mm
Weight
2.2 kg
Packaging content
Number of cameras
1
Other features
Focus
Manual
Video compression formats
AVC, H.264, H.265, M-JPEG, MPEG4
