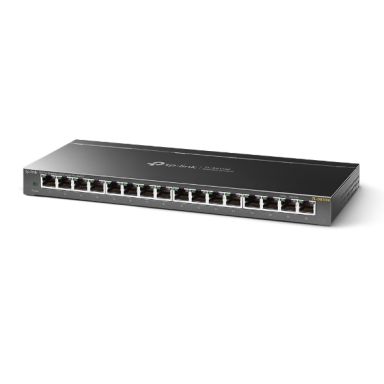

TP-LINK 16-Port Gigabit Unmanaged Pro Switch
In Stock
|
£58.20
£69.84 (Inc. VAT)
TP-LINK 16-Port Gigabit Unmanaged Pro Switch
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
16
Network
IGMP snooping
Yes
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Cable length detection
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex
Yes
VLAN support
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
32
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Virtual LAN features
Tagged VLAN, Protocol-based VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
32
Virtual LAN features
Tagged VLAN, Protocol-based VLAN
Data transmission
Number of VLANs
32
Jumbo frames
10000
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
32 Gbit/s
Store-and-forward
Yes
Number of queues
4
Jumbo frames support
Yes
Forwarding rate
23.81 Mpps
Performance
Packet buffer memory
4.1 MB
Auto-negotiation
Yes
Plug and Play
Yes
Harmonized System (HS) code
85176990
Technical details
Product colour
Black
Housing material
Metal
Rack mounting
No
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Switch layer
L2
Security
Loop protection
Yes
IGMP snooping
Yes
Certificates
Certification
FCC, CE, RoHS
Memory
Packet buffer memory
4.1 MB
Design
Product colour
Black
LED indicators
Yes
Housing material
Metal
Certification
FCC, CE, RoHS
Rack mounting
No
Indication
LED indicators
Yes
Power
Power consumption (max)
9.19 W
Power supply included
Yes
Input voltage
12 V
Input current
0.041666667
Power source
DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
31.68 BTU/h
Weight & dimensions
Width
286 mm
Depth
111.7 mm
Height
25.4 mm
Packaging data
AC adapter included
Yes
Rubber feet
Yes
Quick start guide
Yes
Package width
170 mm
Package depth
412 mm
Package height
70 mm
Package weight
1.36 kg
Cables included
AC
Logistics data
Harmonized System (HS) code
85176990
Other features
Input voltage
12 V
Packaging content
AC adapter included
Yes
Rubber feet
Yes
Quick start guide
Yes
Cables included
AC
