out of 5

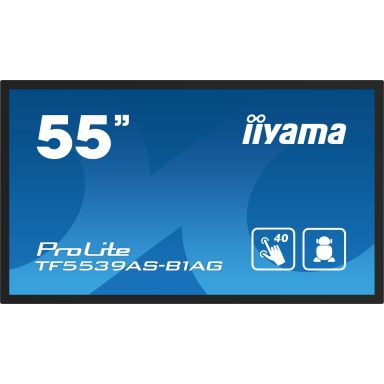

IIYAMA DS TF5539AS 139cm PCAP TOUCH 55''/3840x2160/2xHDMI/DP 24/7
In Stock
|
£1667.40
£2000.88 (Inc. VAT)
IIYAMA DS TF5539AS 139cm PCAP TOUCH 55''/3840x2160/2xHDMI/DP 24/7
Display
LED backlight
Yes
Panel type
IPS
Display number of colours
1.07 billion colours
Number of simultaneous touchpoints
40
Touchscreen
Yes
Active display area (W x H)
1209.6 x 680.4 mm
Display technology
LED
Display diagonal
138.7 cm (54.6")
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Response time
8 ms
Contrast ratio (typical)
50.00069444
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.315 x 0.315 mm
Display diagonal (metric)
139 cm
Native aspect ratio
0.672916667
Horizontal scan range
28 - 160 kHz
Surface hardness
3H
Native refresh rate
60 Hz
Haze rate
0.25
Multi-touch
Yes
Glass thickness
3 mm
Ports & interfaces
USB connector type
USB Type-A, USB Type-B
DisplayPort version
1.2
USB port
Yes
HDMI version
2
RS-232C
Yes
DisplayPorts quantity
1
Ethernet LAN
Yes
HDMI ports quantity
2
DVI port
No
Ethernet LAN (RJ-45) ports
1
USB ports quantity
3
USB 2.0 Type-B ports quantity
1
Audio
Number of built-in speakers
2
RMS rated power
20 W
Built-in speaker(s)
Yes
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Orientation
Horizontal/Vertical
Bezel width (top)
3 cm
Bezel width (side)
3 cm
Bezel width (bottom)
3 cm
Product colour
Black
Panel mounting interface
400 x 400 mm
Certification
TCO Certified, CB, TÃV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
VESA mounting
Yes
Screen shape
Flat
Performance
Purpose
Universal
Operating hours (hours/days)
24/7
International Protection (IP) code
IP54
Mean time between failures (MTBF)
50000 h
On Screen Display (OSD) languages
Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian
On Screen Display (OSD)
Yes
Number of OSD languages
13
HDCP
Yes
HDCP version
2.2
Power
Power consumption (off)
0.3 W
Power consumption (typical)
139 W
Power consumption (standby)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Energy efficiency class (SDR)
F
Energy consumption (SDR) per 1000 hours
78 kWh
Computer system
Computer system
Yes
Operating system installed
Android
Internal memory
4 GB
Internal storage capacity
32 GB
Processor manufacturer
ARM
Built-in processor
Yes
Processor architecture
ARM Cortex-A53+Cortex-A73
Operating system version
11
Weight & dimensions
Display width
1274 mm
Display depth
65.2 mm
Display height
744.8 mm
Display weight
39.6 kg
Packaging data
Package width
1428 mm
Package depth
185 mm
Package height
894 mm
Package volume
47200 cm³
Batteries included
Yes
Remote control included
Yes
Cables included
AC, DisplayPort, HDMI, USB
Packaging content
Batteries included
Yes
Remote control included
Yes
Cables included
AC, DisplayPort, HDMI, USB
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Certificates
Certification
TCO Certified, CB, TÃV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Technical details
VESA mounting
Yes
USB connector type
USB Type-A, USB Type-B
Panel type
IPS
DisplayPort version
1.2
Number of simultaneous touchpoints
40
Thin Client
Operating system installed
Android
Internal memory
4 GB
Internal storage capacity
32 GB
Other features
USB connector type
USB Type-A, USB Type-B
Panel type
IPS
DisplayPort version
1.2
Number of simultaneous touchpoints
40
Mean time between failures (MTBF)
50000 h
Display technology
LED
Bezel width (top)
3 cm
Bezel width (side)
3 cm
Bezel width (bottom)
3 cm
Energy efficiency scale
A to G
