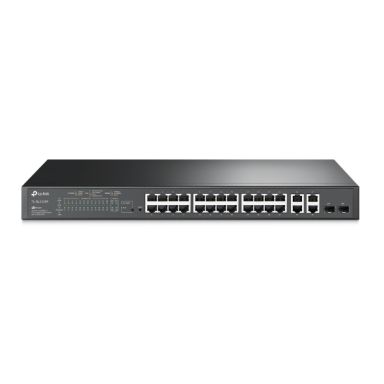

T1500-28PCT (TL-SL2428P) - Switch - Smart - 24 x 10/100 (PoE+)
In Stock
|
£152.15
£182.58 (Inc. VAT)
T1500-28PCT (TL-SL2428P) - Switch - Smart - 24 x 10/100 (PoE+)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Configuring Location Settings (CLI)
Yes
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Combo SFP ports quantity
2
Gigabit Ethernet (copper) ports quantity
4
Fast Ethernet (copper) ports quantity
24
Network
IGMP snooping
Yes
Cable types supported
Cat5, Cat5e
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
512
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Virtual LAN features
VLAN support
Yes
Number of VLANs
512
Data transmission
Number of VLANs
512
Throughput
9.5 Mpps
MAC address table
8000 entries
Switching capacity
12.8 Gbit/s
Number of queues
4
Jumbo frames support
Yes
Technical details
Form factor
1U
Product colour
Black
Firmware upgradeable
Yes
Rack mounting
Yes
Security
SSH/SSL support
Yes
Security algorithms
SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
IGMP snooping
Yes
Access Control List (ACL)
Yes
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMP v1/v2c/v3, RMON, SNTP, TFTP
Certificates
Certification
CE, FCC, RoHS
Design
Form factor
1U
Product colour
Black
Certification
CE, FCC, RoHS
Rack mounting
Yes
Number of fans
2 fan(s)
Performance
Firmware upgradeable
Yes
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Harmonized System (HS) code
85176990
System requirements
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Power
Power consumption (max)
291.6 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
250 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
995.09 BTU/h
Weight & dimensions
Width
440 mm
Depth
180 mm
Height
44 mm
Packaging data
Rack mount kit
Yes
Quick start guide
Yes
Package width
250 mm
Package depth
528 mm
Package height
80 mm
Package weight
3.02 kg
Cables included
AC
Logistics data
Harmonized System (HS) code
85176990
Packaging content
Rack mount kit
Yes
Quick start guide
Yes
Cables included
AC
