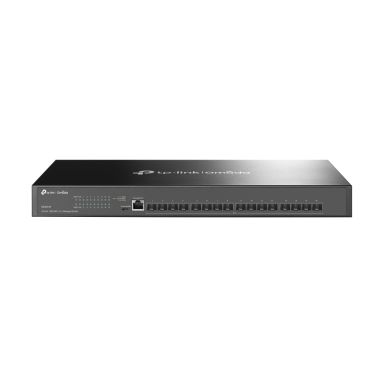

Omada 16-Port 10Ge Sfp+ L2+
In Stock
|
£378.22
£453.86 (Inc. VAT)
Omada 16-Port 10Ge Sfp+ L2+
Management features
Traffic classification
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Switch layer
L2+/L3
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Ports & interfaces
SFP+ module slots quantity
16
Basic switching RJ-45 Ethernet ports quantity
0
Basic switching RJ-45 Ethernet ports type
No
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Console port
RJ-45/Micro-USB
Power connector
DC-in jack
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
Yes
Virtual LAN features
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IGMP snooping
Yes
Data transmission
Jumbo frames
9000
Packet buffer memory
24 MB
MAC address table
32000 entries
Switching capacity
320 Gbit/s
Number of queues
8
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
238.08 Mpps
Number of VLANs
4000
Multicast Listener Discovery (MLD) snooping
Yes
Security
Loop protection
Yes
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Static port security
Yes
SSH/SSL support
Yes
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Authentication type
AAA, TACACS+
DHCP features
DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Yes
Protocols
Management protocols
SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features
IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Certification
CE, FCC, RoHS
Power
Power consumption (max)
32.74 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power connector
DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
111.71 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width
440 mm
Depth
220 mm
Height
44 mm
Packaging content
Rack mount kit
Yes
Quick start guide
Yes
Manual
Yes
Cables included
AC
Packaging data
Package type
Box
Rack mount kit
Yes
Quick start guide
Yes
Manual
Yes
Cables included
AC
IPv4 & IPv6 features
IPv4 & IPv6 features
IPv6 Telnet, IPv6 ping, IPv6 tracert
Performance
Packet buffer memory
24 MB
Technical details
Product colour
Black
Rack mounting
Yes
Memory
Packet buffer memory
24 MB
Certificates
Certification
CE, FCC, RoHS
Indication
LED indicators
Yes
