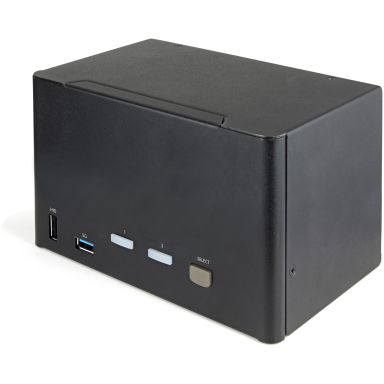

Startech.Com 2 Port Quad Monitor Displayport Kvm Switch - 4k 60hz Uhd Hd
In Stock
|
£505.39
£606.47 (Inc. VAT)
Startech.Com 2 Port Quad Monitor Displayport Kvm Switch - 4k 60hz Uhd Hd
Technical details
Product colour
Black
Rack mounting
No
Scan interval
3-8-15-30 s
Push button
Yes
On Screen Display (OSD)
No
LED indicators
Yes
Hot keys
Yes
IP control
No
USB hub
Yes
Performance
HDCP
Yes
Daisy chain
No
Chipset
Genesys Logic - GL3523
Data transfer rate (max)
5 Gbit/s
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
3840 x 2160 pixels
Scan interval
3-8-15-30 s
Audio channels
5.1
Number of displays supported
4
Video
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
3840 x 2160 pixels
Ports & interfaces
Console USB ports quantity
4
Console ports
3.5mm headphone- 3.5mm mic- DisplayPort- USB A
HDCP
Yes
DisplayPorts quantity
12
DisplayPort version
1.2
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Audio connections
Yes
Headphone outputs
3
DC-in jack
Yes
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Design
Mean time between failures (MTBF)
156000 h
Product colour
Black
Rack mounting
No
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Certification
CE- FCC- RoHS
Housing material
Steel
Display
Built-in display
No
On Screen Display (OSD)
No
Power
Input current
1 A
Output current
3 A
Power plug type
Type M
Compatible power plug types
EU- JP- UK- US
Output voltage
12 V
AC input voltage
100 - 240 V
Power consumption (typical)
36 W
External power adapter
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
180 mm
Depth
438 mm
Height
43 mm
Weight
959 g
Package width
185 mm
Package depth
250 mm
Package height
100 mm
Packaging data
Package width
185 mm
Package depth
250 mm
Package height
100 mm
Packaging content
Rubber feet
Yes
Manual
Yes
Certificates
Certification
CE- FCC- RoHS
Logistics data
Master (outer) case width
325 mm
Master (outer) case length
395 mm
Master (outer) case height
275 mm
Products per master (outer) case
6 pc(s)
Harmonized System (HS) code
85176200
Other features
Push button
Yes
Hot keys
Yes
IP control
