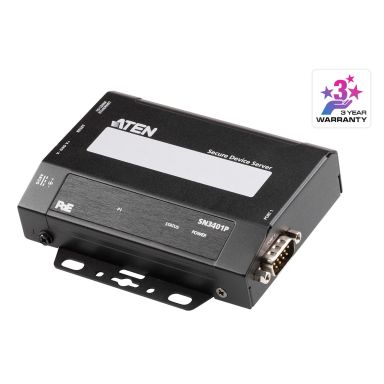

ATEN 1-Port POE RS-232/422/485 Secure
In Stock
|
£150.40
£180.48 (Inc. VAT)
ATEN 1-Port POE RS-232/422/485 Secure
Technical details
Stop bits
1, 1.5, 2
Flow Control type
DTR/DSR, RTS/CTS, XON/XOFF
Data bits
5, 6, 7, 8
Package width
59 mm
Package height
160 mm
Surge protection voltage
2 kV
Serial ports quantity
1
Serial interface type
RS-232/422/485
RS-485 signals
Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
RS-422 signals
GND, RxD+, RxD-, TxD+, TxD-
RS-232 signals
CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD
Networking standards
IEEE 802.3af
Isolation
1.5 kV
Flow control support
Yes
Ethernet LAN data rates
10,100 Mbit/s
Electrostatic Discharge (ESD) protection
8 kV
Data transfer rate
100 Mbit/s
Baud rate
921.6 Kbit/s
Parity bit
Even, Mark, No, Odd, Space
Sustainability compliance
Yes
Sustainability certificates
UL ECOLOGO
Compliance certificates
RoHS
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
Terminal block port
Yes
Weight & dimensions
Package weight
420 g
Package width
59 mm
Package height
160 mm
Weight
210 g
Package depth
239 mm
Width
117 mm
Depth
98 mm
Height
26 mm
Power
Power source type
DC, PoE
Input frequency
50 - 60 Hz
Output voltage
9 - 48 V
Input voltage
100 - 240 V
Power consumption (max)
1.3 W
Power consumption (typical)
1.18 W
Operational conditions
Storage temperature (T-T)
-40 - 75 °C
Operating temperature (T-T)
0 - 60 °C
Operating relative humidity (H-H)
5 - 95%
Certificates
Safety
UL 60950-1, UL 62368-1
Indication
LED indicators
Power, Status
Packaging content
User guide
Yes
DIN rail kit included
Yes
Terminal block included
Yes
Number of foot pads
4 pc(s)
Design
Housing material
Metal
Product colour
Black
Safety
UL 60950-1, UL 62368-1
Reset button
Yes
DIN rail mounting
Yes
Logistics data
Country of origin
Taiwan
Sustainability
Sustainability compliance
Yes
Sustainability certificates
UL ECOLOGO
