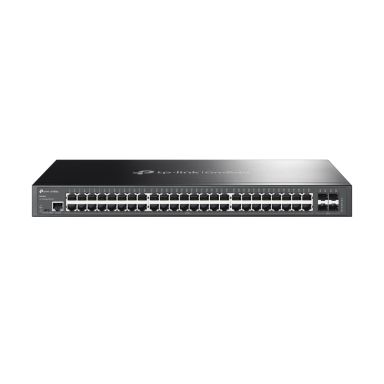

Omada 48-Port Gigabit L2+
In Stock
|
£246.54
£295.85 (Inc. VAT)
Omada 48-Port Gigabit L2+
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
MIB support
Yes
Switch layer
L2+
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Ports & interfaces
SFP module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Gigabit Ethernet (copper) ports quantity
48
Console port
RJ-45/Micro-USB
Network
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Broadcast storm control
Yes
10G support
No
Policy-based routing
Yes
Virtual LAN features
Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IPv6 routes
48
IPv4 routes
48
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
Data transmission
Jumbo frames
9000
MAC address table
16000 entries
Switching capacity
104 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
77.38 Mpps
Number of VLANs
4000
Multicast Listener Discovery (MLD) snooping
Yes
Security
Loop protection
Yes
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication, Port-based authentication
SSH/SSL support
Yes
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
AAA, RADIUS, TACACS+
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Yes
Protocols
Management protocols
SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Yes
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Form factor
1U
Product colour
Black
Rack mounting
Yes
Certification
CE, FCC, RoHS
Performance
Internal memory
256 MB
Flash memory
32 MB
Fanless
Yes
Power
Power consumption (max)
34.86 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
118.94 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width
440 mm
Depth
220 mm
Height
44 mm
Packaging content
Rack mount kit
Yes
Quick start guide
Yes
Cables included
AC
IPv4 & IPv6 features
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Technical details
Form factor
1U
Product colour
Black
Rack mounting
Yes
Memory
Internal memory
256 MB
Flash memory
32 MB
Certificates
Certification
CE, FCC, RoHS
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Packaging data
Rack mount kit
Yes
Quick start guide
Yes
Cables included
AC
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
