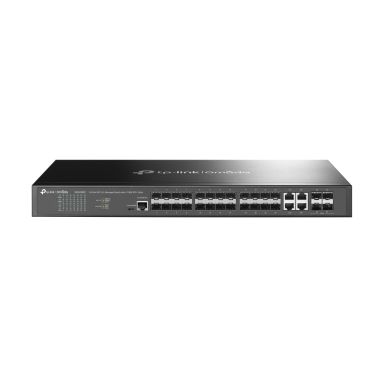

Omada 24-Port Sfp L2+ Managed
In Stock
|
£366.33
£439.60 (Inc. VAT)
Omada 24-Port Sfp L2+ Managed
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
MIB support
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Switch layer
L2+
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
0
Basic switching RJ-45 Ethernet ports type
No
Combo SFP ports quantity
4
Fiber ports quantity
20
Fiber optic connector
SFP, SFP+
Console port
RJ-45/Micro-USB
Power connector
AC-in jack
Network
Active link detection
Yes
Networking standards
IEEE 802.11d, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Routing entries
512
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000,10000 Mbit/s
Broadcast storm control
Yes
10G support
Yes
Policy-based routing
Yes
Virtual LAN features
Port-based VLAN, Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
IPv6 routes
48
IPv4 routes
48
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
IGMP proxy
Yes
Data transmission
Jumbo frames
9000
Number of static routes
48
Packet buffer memory
12 MB
MAC address table
16000 entries
Switching capacity
128 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
95.23 Mpps
Number of VLANs
4000
Multicast Listener Discovery (MLD) snooping
Yes
Security
Loop protection
Yes
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
Authentication
Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support
Yes
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Password protection
Yes
Authentication type
AAA, RADIUS, TACACS+
IGMP proxy
Yes
DHCP features
DHCP client, DHCP relay, DHCP server
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Yes
Protocols
Management protocols
SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Yes
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Form factor
1U
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Number of fans
1 fan(s)
Power
Power consumption (max)
35.7 W
Power supply included
Yes
Redundant power supply (RPS) support
Yes
Number of power supply units
2
Power source
AC
Power connector
AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
121.81 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
Port-based VLAN, Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Weight & dimensions
Width
440 mm
Depth
220 mm
Height
44 mm
Packaging content
Rack mount kit
Yes
Manual
Yes
Cables included
AC
IPv4 & IPv6 features
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Optical fiber
Fiber optic connector
SFP, SFP+
Performance
Packet buffer memory
12 MB
Technical details
Form factor
1U
Product colour
Black
Rack mounting
Yes
Memory
Packet buffer memory
12 MB
Indication
LED indicators
Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Packaging data
Rack mount kit
Yes
Manual
Yes
Cables included
AC
Other features
Ethernet LAN data rates
10,100,1000,10000 Mbit/s
