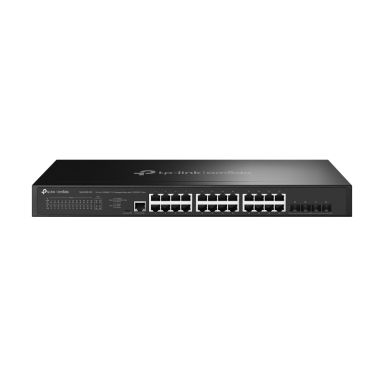

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots
In Stock
|
£271.75
£326.10 (Inc. VAT)
TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
MIB support
Yes
Switch layer
L2+
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Console port
RJ-45/Micro-USB
Power connector
AC-in jack
2.5G Ethernet (copper) ports quantity
24
Network
Active link detection
Yes
Networking standards
IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
Yes
Policy-based routing
Yes
Virtual LAN features
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IPv6 routes
48
IPv4 routes
48
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
IPv6 FIB entries
100
IPv4 FIB entries
100
Data transmission
Jumbo frames
9000
Number of static routes
48
Packet buffer memory
16 MB
MAC address table
32000 entries
Switching capacity
200 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
148.8 Mpps
Multicast Listener Discovery (MLD) snooping
Yes
Security
Loop protection
Yes
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
Authentication
Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
AAA, RADIUS, TACACS+
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Yes
Protocols
Management protocols
SNMP v1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Yes
IPv6 FIB entries
100
IPv4 FIB entries
100
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Form factor
1U
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Number of fans
1 fan(s)
Certification
CE, FCC, RoHS
Power
Power consumption (max)
45.1 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power connector
AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
154.38 BTU/h
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width
440 mm
Depth
180 mm
Height
44 mm
Packaging content
Quick start guide
Yes
Cables included
LAN (RJ-45)
IPv4 & IPv6 features
IPv6 FIB entries
100
IPv4 FIB entries
100
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Performance
Packet buffer memory
16 MB
Technical details
Form factor
1U
Product colour
Black
Rack mounting
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory
16 MB
Certificates
Certification
CE, FCC, RoHS
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators
Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Packaging data
Quick start guide
Yes
Cables included
LAN (RJ-45)
