Omada 28-Port Gigabit L2+
In Stock
|
£266.54
£319.85 (Inc. VAT)

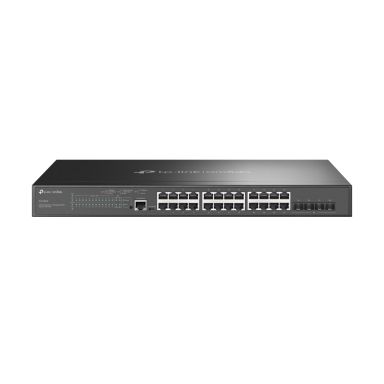

Omada 28-Port Gigabit L2+
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
Switch layer
L2+
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Ports & interfaces
SFP module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Gigabit Ethernet (copper) ports quantity
24
Console port
RJ-45/Micro-USB
Power connector
AC-in jack
Copper ethernet cabling technology
10BASE-T, 1000BASE-T
Network
Active link detection
Yes
Copper ethernet cabling technology
10BASE-T, 1000BASE-T
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Broadcast storm control
Yes
10G support
No
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
Data transmission
Jumbo frames
9000
Packet buffer memory
12 MB
MAC address table
16000 entries
Switching capacity
56 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
41.66 Mpps
Number of VLANs
4000
Security
Loop protection
Yes
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication, Port-based authentication
Static port security
Yes
SSH/SSL support
Yes
Security algorithms
SSH, SSL/TLS
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMPv1/v2c/v3, LLDP/LLDP-MED
GARP VLAN Registration Protocol (GVRP)
Yes
Design
Form factor
1U
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Number of fans
2 fan(s)
Certification
CE, FCC, RoHS
Power
Power consumption (max)
480.1 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power connector
AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
384 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
1637.14 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width
440 mm
Depth
330 mm
Height
44 mm
Packaging content
Quick start guide
Yes
User guide
Yes
Performance
Packet buffer memory
12 MB
Technical details
Form factor
1U
Product colour
Black
Rack mounting
Yes
Memory
Packet buffer memory
12 MB
Certificates
Certification
CE, FCC, RoHS
Indication
LED indicators
Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Packaging data
Quick start guide
Yes
User guide
Yes
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
