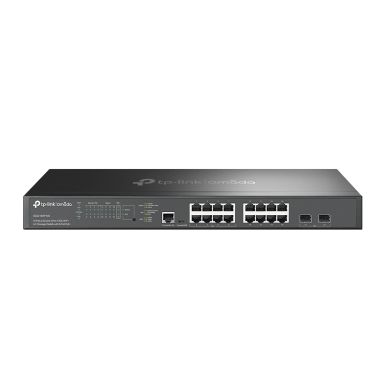

TP-Link Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
In Stock
|
£311.17
£373.40 (Inc. VAT)
TP-Link Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
MIB support
MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB
Switch layer
L2+
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Ports & interfaces
SFP+ module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Console port
RJ-45/Micro-USB
Power connector
AC-in jack
Network
Networking standards
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Ethernet LAN data rates
100,1000,2500 Mbit/s
Broadcast storm control
Yes
10G support
Yes
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
Data transmission
Jumbo frames
9000
Number of static routes
48
Number of IP interfaces
32
Packet buffer memory
12 MB
MAC address table
16000 entries
Switching capacity
120 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
89.28 Mpps
Multicast Listener Discovery (MLD) snooping
Yes
Security
Loop protection
Yes
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication, Port-based authentication
Static port security
Yes
SSH/SSL support
Yes
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Password protection
Yes
Authentication type
AAA, TACACS+
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Yes
Protocols
Management protocols
SNMP v1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Yes
Design
Form factor
1U
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Number of fans
2 fan(s)
Certification
CE, FCC, RoHS
Power
Power consumption (max)
299.4 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power connector
AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
240 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
1021.64 BTU/h
Virtual LAN features
VLAN support
Yes
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width
440 mm
Depth
180 mm
Height
44 mm
Packaging content
Quick start guide
Yes
Cables included
AC
Packaging data
Package type
Box
Quick start guide
Yes
Cables included
AC
Sustainability
Sustainability compliance
Yes
Performance
Packet buffer memory
12 MB
Technical details
Form factor
1U
Product colour
Black
Rack mounting
Yes
Sustainability compliance
Yes
Compliance certificates
Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory
12 MB
Certificates
Certification
CE, FCC, RoHS
Compliance certificates
Federal Communications Commission (FCC), RoHS
Indication
LED indicators
Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Other features
Ethernet LAN data rates
100,1000,2500 Mbit/s
