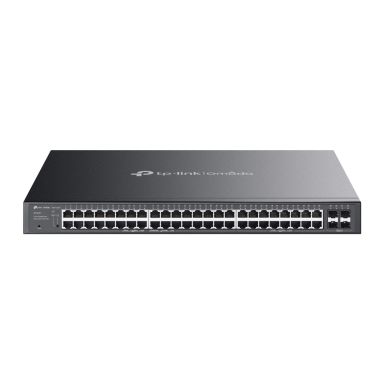

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
In Stock
|
£392.59
£471.11 (Inc. VAT)
TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L2/L2+
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Ports & interfaces
SFP module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Power connector
AC-in jack
Network
Active link detection
Yes
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3x
VLAN support
Yes
Port mirroring
Yes
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
10G support
No
IGMP snooping
Yes
Data transmission
Jumbo frames
9000
MAC address table
16000 entries
Switching capacity
104 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
77.37 Mpps
Security
Loop protection
Yes
SSH/SSL support
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3
MAC address filtering
Yes
IGMP snooping
Yes
Authentication type
RADIUS
DHCP features
DHCP relay, DHCP server
Design
Form factor
1U
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Power
Power consumption (max)
304.5 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power connector
AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
32
Total Power over Ethernet (PoE) budget
230 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
1035.4 BTU/h
Virtual LAN features
VLAN support
Yes
Weight & dimensions
Width
440 mm
Depth
330 mm
Height
44 mm
Technical details
Form factor
1U
Product colour
Black
Rack mounting
Yes
Indication
LED indicators
Yes
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
