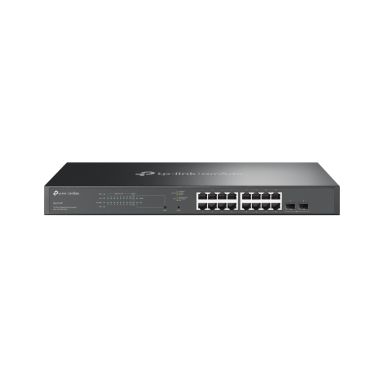

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+
In Stock
|
£175.50
£210.60 (Inc. VAT)
TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
MIB support
MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)
Switch layer
L2/L2+
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Policy-based routing
Yes
Data transmission
Jumbo frames
9
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
26.78 Gbit/s
Jumbo frames support
Yes
Forwarding rate
26.78 Mpps
Security
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication, Port-based authentication
Static port security
Yes
SSH/SSL support
Yes
MAC address filtering
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client, DHCP relay, DHCP snooping
Multicast features
Multicast support
Yes
Multicast features
Multicast forwarding
Design
Form factor
1U
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Certification
CE, FCC, RoHS
Power
Power consumption (max)
181.4 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
DC/PoE
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
150 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
619.06 BTU/h
Virtual LAN features
VLAN support
Yes
Weight & dimensions
Width
440 mm
Depth
180 mm
Height
44 mm
Packaging content
User guide
Yes
Cables included
LAN (RJ-45)
Packaging data
Package type
Box
User guide
Yes
Cables included
LAN (RJ-45)
Performance
Packet buffer memory
4.1 MB
Auto-negotiation
Yes
Technical details
Form factor
1U
Product colour
Black
Rack mounting
Yes
Memory
Packet buffer memory
4.1 MB
Certificates
Certification
CE, FCC, RoHS
Indication
LED indicators
Yes
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
