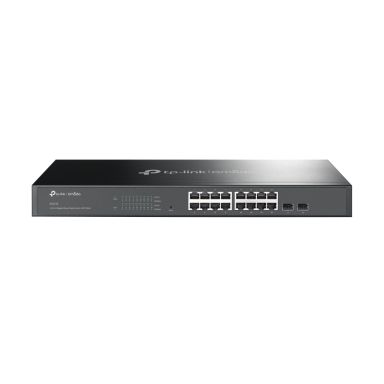

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots
In Stock
|
£104.76
£125.71 (Inc. VAT)
TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
MIB support
Yes
Switch layer
L2/L2+
Cloud-managed
Yes
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Gigabit Ethernet (copper) ports quantity
16
Network
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Broadcast storm control
Yes
10G support
No
Virtual LAN features
Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
Data transmission
Jumbo frames
9000
Number of static routes
32
Number of IP interfaces
16
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
36 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
26.8 Mpps
Number of VLANs
4000
Multicast Listener Discovery (MLD) snooping
Yes
Security
Loop protection
Yes
BPDU filtering/protection
Yes
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Yes
Protocols
Management protocols
SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Yes
Design
Form factor
1U
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Certification
CE, FCC, RoHS
Performance
Fanless
Yes
Packet buffer memory
4.1 MB
Power
Power consumption (max)
12.3 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
41.97 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width
440 mm
Depth
180 mm
Height
44 mm
Packaging content
Quick start guide
Yes
Cables included
AC, LAN (RJ-45)
Technical details
Form factor
1U
Product colour
Black
Rack mounting
Yes
Memory
Packet buffer memory
4.1 MB
Certificates
Certification
CE, FCC, RoHS
Indication
LED indicators
Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Packaging data
Quick start guide
Yes
Cables included
AC, LAN (RJ-45)
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
