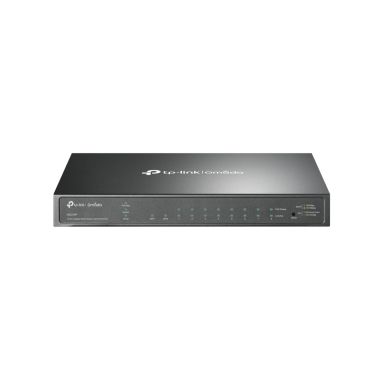

Omada 10-Port Gigabit Smart
In Stock
|
£95.74
£114.89 (Inc. VAT)
Omada 10-Port Gigabit Smart
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
Switch layer
L2/L2+
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Power connector
DC-in jack
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
IGMP snooping
Yes
Data transmission
Jumbo frames
9000
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Jumbo frames support
Yes
Forwarding rate
14.88 Mpps
Multicast Listener Discovery (MLD) snooping
Yes
Security
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication, Port-based authentication
Static port security
Yes
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Yes
Protocols
IPv4 & IPv6 features
Dual stack IPv4/IPv6
Design
Product colour
Black
LED indicators
Yes
Certification
CE, FCC, RoHS
Performance
Firmware upgradeable
Yes
Packet buffer memory
4.1 MB
Auto-negotiation
Yes
Power
Power consumption (max)
77.8 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
DC/PoE
Power connector
DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Virtual LAN features
VLAN support
Yes
Weight & dimensions
Width
209 mm
Depth
126 mm
Height
26 mm
Packaging content
Manual
Yes
Cables included
AC
IPv4 & IPv6 features
IPv4 & IPv6 features
Dual stack IPv4/IPv6
Technical details
Product colour
Black
Firmware upgradeable
Yes
Memory
Packet buffer memory
4.1 MB
Certificates
Certification
CE, FCC, RoHS
Indication
LED indicators
Yes
Packaging data
Manual
Yes
Cables included
AC
