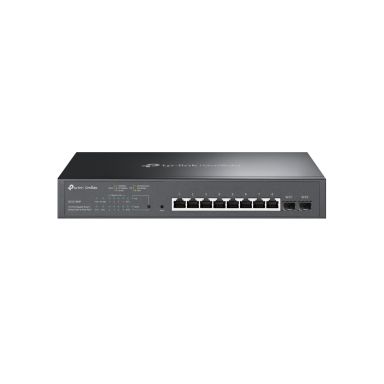

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
In Stock
|
£130.21
£156.25 (Inc. VAT)
TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493
Switch layer
L2/L2+
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Gigabit Ethernet (copper) ports quantity
8
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Network
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
No
Virtual LAN features
MAC address-based VLAN, Multicast VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IGMP snooping
Yes
Optical fiber
Fiber ethernet cabling technology
100BASE-FX, 1000BASE-X
Data transmission
Jumbo frames
9000
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Number of queues
8
Jumbo frames support
Yes
Forwarding rate
14.9 Mpps
Number of VLANs
4000
Security
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
SSH/SSL support
Yes
Security algorithms
EAP-LEAP, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
IGMP snooping
Yes
Access Control List (ACL)
Yes
Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMPv1/v2c/v3, SNTP
Design
Form factor
1U
Product colour
Black
Rack mounting
Yes
Number of fans
1 fan(s)
Certification
CE, FCC, RoHS
Power
Power consumption (max)
173.9 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
150 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
594.46 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
MAC address-based VLAN, Multicast VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width
294 mm
Depth
180 mm
Height
44 mm
Performance
Packet buffer memory
4.1 MB
Technical details
Form factor
1U
Product colour
Black
Rack mounting
Yes
Memory
Packet buffer memory
4.1 MB
Certificates
Certification
CE, FCC, RoHS
