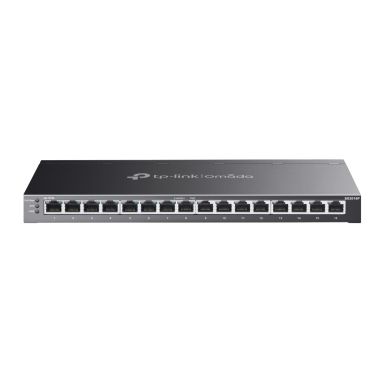

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
In Stock
|
£126.00
£151.20 (Inc. VAT)
TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
MIB support
RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
Switch layer
L2/L2+
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Power connector
DC-in jack
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Network
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Virtual LAN features
Multicast VLAN, Tagged VLAN, Voice VLAN
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
Data transmission
Jumbo frames
9000
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
32 Gbit/s
Number of queues
8
Jumbo frames support
Yes
Forwarding rate
23.81 Mpps
Number of VLANs
4000
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2
Security
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support
Yes
Security algorithms
EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
MAC address entries
Dynamic MAC address entries, Static MAC address entries
DHCP features
DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2
Protocols
Supported network protocols
ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
GARP VLAN Registration Protocol (GVRP)
Yes
IPv4 & IPv6 features
Dual stack IPv4/IPv6
Design
Product colour
Black
LED indicators
PoE, Power, System
Rack mounting
Yes
Certification
CE, FCC, RoHS
Performance
Firmware upgradeable
Yes
Fanless
Yes
Packet buffer memory
4.1 MB
Auto-negotiation
Yes
Power
Power consumption (max)
146.5 W
DC input voltage
53.5 V
Power source
DC/PoE
Power connector
DC-in jack
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
120 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
499.98 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
Multicast VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width
286 mm
Depth
111.7 mm
Height
25.4 mm
Packaging content
Manual
Yes
Cables included
AC
IPv4 & IPv6 features
IPv4 & IPv6 features
Dual stack IPv4/IPv6
Technical details
Product colour
Black
Firmware upgradeable
Yes
Rack mounting
Yes
Memory
Packet buffer memory
4.1 MB
Certificates
Certification
CE, FCC, RoHS
Indication
LED indicators
PoE, Power, System
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Packaging data
Manual
Yes
Cables included
AC
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
