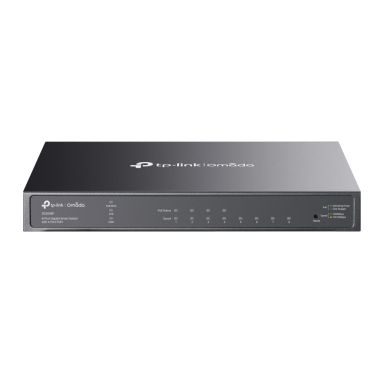

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
In Stock
|
£69.84
£83.81 (Inc. VAT)
TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
MIB support
MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)
Switch layer
L2/L2+
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4094
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
IGMP snooping
Yes
Data transmission
Jumbo frames
9000
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
16 Gbit/s
Number of queues
8
Jumbo frames support
Yes
Forwarding rate
11.9 Mpps
Number of VLANs
4094
Security
Authentication
MAC-based authentication, Web-based authentication
Security algorithms
802.1x RADIUS
MAC address filtering
Yes
IGMP snooping
Yes
Authentication type
RADIUS
DHCP features
DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMPv1/v2c/v3
IPv4 & IPv6 features
IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Certification
CE, FCC, RoHS
Performance
Fanless
Yes
Packet buffer memory
4.1 MB
Auto-negotiation
Yes
Power
Power consumption (max)
77.3 W
Power supply included
Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
263.6 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Weight & dimensions
Width
209 mm
Depth
126 mm
Height
26 mm
Packaging content
Manual
Yes
Packaging data
Package type
Box
Manual
Yes
IPv4 & IPv6 features
IPv4 & IPv6 features
IPv6 Telnet, IPv6 ping, IPv6 tracert
Technical details
Product colour
Black
Rack mounting
Yes
Memory
Packet buffer memory
4.1 MB
Certificates
Certification
CE, FCC, RoHS
Indication
LED indicators
Yes
