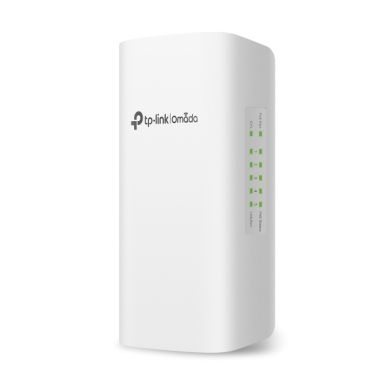

TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
In Stock
|
£65.77
£78.92 (Inc. VAT)
TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
MIB support
Yes
Switch layer
L2/L2+
Cloud-managed
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity
4
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T
Network
Cable types supported
Cat5, Cat5e
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T
Networking standards
IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
Flow control support
Yes
10G support
Yes
Virtual LAN features
Voice VLAN
IPv6 routes
32
IPv4 routes
32
IGMP snooping
Yes
IPv6 multicast entries
511
IPv4 multicast entries
511
Access Control List (ACL) IPv4 entries
32
Data transmission
Packet forwarding rate (1 Gbps)
7440 pps
Jumbo frames
9
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
10 Gbit/s
Jumbo frames support
Yes
Multicast MAC address table
8000 entries
Number of VLANs
4000
Security
IP-MAC-Port binding
Yes
Authentication
MAC-based authentication, Port-based authentication
Security algorithms
802.1x RADIUS
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Password protection
Yes
Access Control List (ACL) IPv4 entries
32
DHCP features
DHCP relay, DHCP server
Multicast features
Multicast MAC address table
8000 entries
Multicast support
Yes
IPv6 multicast entries
511
IPv4 multicast entries
511
Protocols
IPv4 & IPv6 features
Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert
Design
Form factor
Desktop
Product colour
White
Stackable
No
LED indicators
Yes
Rack mounting
No
Power
Power supply included
Yes
Power consumption (typical)
71.5 W
Power source
DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
64 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
243.99 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
Voice VLAN
Weight & dimensions
Width
170 mm
Depth
100 mm
Height
38.5 mm
Sustainability
Sustainability compliance
Yes
IPv4 & IPv6 features
Access Control List (ACL) IPv4 entries
32
IPv4 & IPv6 features
Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert
Performance
Packet buffer memory
4.1 MB
Stackable
No
Technical details
Form factor
Desktop
Product colour
White
Stackable
No
Rack mounting
No
Sustainability compliance
Yes
Compliance certificates
CE, RoHS
Memory
Packet buffer memory
4.1 MB
Certificates
Compliance certificates
CE, RoHS
Indication
LED indicators
Yes
