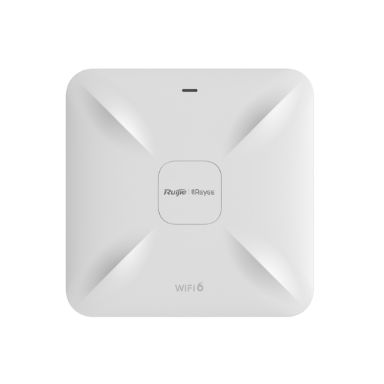

Ruijie RG-RAP2260(G) Reyee Wi-Fi 6 AX1800 Ceiling Access Point
In Stock
|
£68.92
£82.70 (Inc. VAT)
Ruijie RG-RAP2260(G) Reyee Wi-Fi 6 AX1800 Ceiling Access Point
Data transmission
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
1201 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wireless isolation
Yes
Frequency band
2.4 - 5.35 GHz
Number of users
512 user(s)
Web-based management
Yes
VLAN support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Modulation
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
1201 Mbit/s
MIMO
Yes
Wi-Fi roaming
Yes
Wireless LAN features
Frequency band
2.4 - 5.35 GHz
Modulation
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Network
Number of users
512 user(s)
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Management features
VLAN support
Yes
Web-based management
Yes
Features
2.4 GHz
Yes
5 GHz
Yes
Wireless isolation
Yes
Frequency band
2.4 - 5.35 GHz
Number of users
512 user(s)
VLAN support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Modulation
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Maximum data transfer rate
1201 Mbit/s
MIMO
Yes
Wi-Fi roaming
Yes
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1201 Mbit/s
Security
Number of SSID supported
8
Security algorithms
WPA, WPA-PSK, WPA-TKIP, WPA2-AES
Whitelist
Yes
Blacklist
Yes
Service Set Identifier (SSID) features
Hidden SSID, Multiple SSIDs
Protocols
DHCP server
Yes
DHCP client
Yes
Supported protocols
Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Cabling technology
10/100/1000Base-T(X)
Power
Power consumption (typical)
15.3 W
Power over Ethernet (PoE)
Yes
Input current
1.5 A
Design
Placement
Wall
Product colour
White
LED indicators
Power
Antenna
Antenna type
Internal
Antennas quantity
2
Antenna gain level (max)
3 dBi
Antenna features
Integrated antenna
Indication
LED indicators
Power
Weight & dimensions
Width
194 mm
Depth
35 mm
Weight
560 g
Height
194 mm
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Logistics data
Quantity per pack
1 pc(s)
