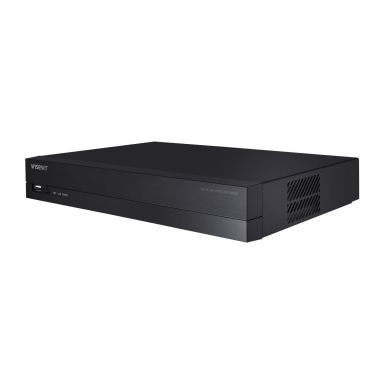

HANWHA HANWHA QRN-430S 4CH NVR
In Stock
|
£228.98
£274.78 (Inc. VAT)
HANWHA HANWHA QRN-430S 4CH NVR
Performance
Video input channels
4 channels
Maximum resolution
3840 x 2160 pixels
Video formats supported
H.264, H.265, M-JPEG
Supported network protocols
IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
Audio formats supported
AAC, G.711, G.726
Throughput data rate
50 Mbit/s
Syslog
Yes
PTZ control
Yes
Playback modes
Reverse, Slow play
Ethernet LAN data rates
10,100,1000 Mbit/s
Recording modes
Event, Schedule
Maximum frame rate
240 fps
Supported resolutions
1920 x 1080, 1280 x 720
Number of users
4 user(s)
Number of simultaneously playbacked channels
32 channels
Video recording modes
720p, 1080p, 2160p
Output bandwidth
32 Mbit/s
Input bandwidth
40 Mbit/s
Hard drive
Number of HDDs supported
1
Maximum storage capacity
6 TB
HDD interface
SATA
Storage
Number of HDDs supported
1
Maximum storage capacity
6 TB
HDD interface
SATA
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power over Ethernet (PoE)
Yes
HDMI output
Yes
USB 2.0 ports quantity
2
Supported network protocols
IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DC-in jack
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Power over Ethernet (PoE) ports quantity
4
HDMI ports quantity
1
Ethernet WAN
Yes
Features
Product colour
Black
Power
AC input voltage
100-240 V
AC input frequency
50/60 Hz
Power consumption (max)
52 W
Total Power over Ethernet (PoE) budget
35 W
System requirements
Windows operating systems supported
Windows 10
Mac operating systems supported
Mac OS X 11.0 Big Sur
Browser supported
Google Chrome, Microsoft Edge, Mac Safari
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 85%
Weight & dimensions
Width
300 mm
Depth
208.4 mm
Height
47.6 mm
Weight
1.03 kg
