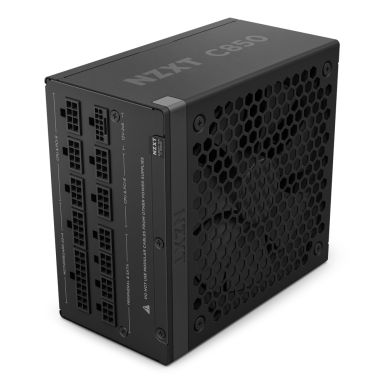

NZXT C850 Gold ATX 3.1 power supply unit 850 W 24-pin ATX Black
In Stock
|
£101.40
£121.68 (Inc. VAT)
NZXT C850 Gold ATX 3.1 power supply unit 850 W 24-pin ATX Black
Cooling
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Fan speed
0 - 2300 RPM
Fan location
Top
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Purpose
PC
ATX version
3.1
EPS version
2.92
Noise level
44.5 dB
Mean time between failures (MTBF)
100000 h
Bearing technology
FDB
Design
80 PLUS certification
80 PLUS Gold
Product colour
Black
Fan diameter
13.5 cm
On/off switch
Yes
Number of fans
1 fan(s)
Fan speed
0 - 2300 RPM
Fan location
Top
Cooling type
Active
Power
Total power
850 W
AC input voltage
100 - 240 V
Input current
10 - 5 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
120 W
Combined power (+12V)
850 W
Combined power (+5V)
15 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
22 A
Max output current (+12V)
70.83 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Efficiency
91.70%
Ports & interfaces
Motherboard power cable length
60 cm
SATA power cable length
150,500 mm
Peripheral (Molex) power cable length
150,500 mm
Motherboard power connector
24-pin ATX
Number of SATA power connectors
12
Peripheral (Molex) power connectors (4-pin)
4
PCI Express power connectors (6+2 pin)
2
CPU power connector (4+4 pin)
Yes
ATX Power connector (24-pin)
Yes
Cabling type
Fully-Modular
Operational conditions
Operating temperature (T-T)
Certificates
Compliance certificates
BIS, BSMI, CCC, Federal Communications Commission (FCC), RCM, UKCA
80 PLUS certification
80 PLUS Gold
Weight & dimensions
Width
150 mm
Depth
160 mm
Height
86 mm
Technical details
Warranty period
10 year(s)
Compliance certificates
BIS, BSMI, CCC, Federal Communications Commission (FCC), RCM, UKCA
Logistics data
Warranty period
10 year(s)
