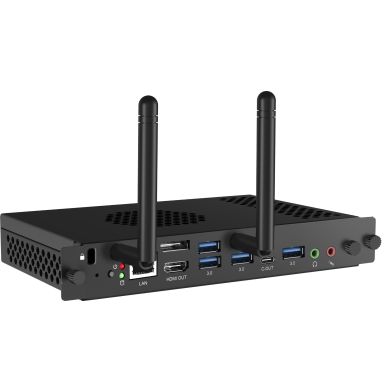

iiyama OPC51204BC-1 PC/workstation Intel® Core™ i5 i5-12450H 8 GB DDR4-SDRAM 256 GB SSD Windows 11 IoT Enterprise Mini PC Black
In Stock
|
£452.60
£543.12 (Inc. VAT)
iiyama OPC51204BC-1 PC/workstation Intel® Core™ i5 i5-12450H 8 GB DDR4-SDRAM 256 GB SSD Windows 11 IoT Enterprise Mini PC Black
Processor
Processor generation
12th gen Intel® Core⢠i5
Processor cache type
Smart Cache
Processor cache
12 MB
Processor model
i5-12450H
Processor manufacturer
Intel
Processor cores
8
Processor family
Intel® Core⢠i5
Performance cores
4
Efficient cores
4
Processor base power
45 W
Maximum turbo power
95 W
Efficient-core Max Turbo Frequency
3.3 GHz
Performance-core Max Turbo Frequency
4.4 GHz
Memory
Internal memory
8 GB
Maximum internal memory
32 GB
Internal memory type
DDR4-SDRAM
Memory clock speed
3200 MHz
Storage
Storage media
SSD
Optical drive type
No
SSD interface
PCI Express
SSD capacity
256 GB
Number of SSDs installed
1
Total storage capacity
256 GB
SSD form factor
M.2
Total SSDs capacity
256 GB
Graphics
Discrete graphics card
No
On-board graphics card family
Intel® UHD Graphics
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board graphics card model
Intel® UHD Graphics
On-board GPU manufacturer
Intel
Optical drive
Optical drive type
No
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Bluetooth version
5.2
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN data rates
10,100,1000 Mbit/s
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Thunderbolt 3 ports quantity
0
HDMI version
2
USB 2.0 ports quantity
0
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
DisplayPort version
1.4
Technical details
Product type
Mini PC
Trusted Platform Module (TPM)
Yes
Product colour
Black
Chassis type
Mini PC
Design
Product colour
Black
Chassis type
Mini PC
Performance
Product type
Mini PC
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2
Software
Operating system architecture
64-bit
Operating system installed
Windows 11 IoT Enterprise
Power
Power consumption (typical)
80.7 W
Power consumption (standby)
2.9 W
Operational conditions
Storage temperature (T-T)
-10 - 50 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 45 °C
Weight & dimensions
Package width
260 mm
Package depth
72 mm
Package height
192 mm
Width
119 mm
Depth
180 mm
Height
30 mm
Package weight
957 g
Weight
600 g
Packaging data
Package width
260 mm
Package depth
72 mm
Package height
192 mm
Package weight
957 g
Packaging content
Display included
No
Other features
Trusted Platform Module (TPM)
Yes
On-board graphics card
Yes
Processor manufacturer
Intel
