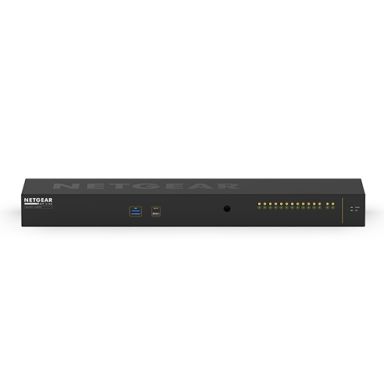

M4250 14-PORT AV LINE SWITCH
In Stock
|
£941.66
£1129.99 (Inc. VAT)
M4250 14-PORT AV LINE SWITCH
Management features
Multicast support
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
Switch layer
L2/L3
Network
IGMP snooping
Yes
IPv6 multicast entries
2000
IPv4 multicast entries
2000
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Number of VLANs
4093
Link aggregation
Yes
Broadcast storm control
Yes
10G support
No
Virtual LAN features
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4093
Virtual LAN features
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Data transmission
Number of VLANs
4093
Jumbo frames
12000
Throughput
74.4 Mpps
Latency (1 Gbps)
1.186 µs
Packet buffer memory
16 MB
MAC address table
16000 entries
Switching capacity
100 Gbit/s
Store-and-forward
Yes
Number of queues
8
Jumbo frames support
Yes
Performance
Packet buffer memory
16 MB
Processor frequency
1250 MHz
Noise level
46.4 dB
Mean time between failures (MTBF)
720892 h
Internal memory
2048 MB
Built-in processor
Yes
Processor model
ARM Cortex-A9
Harmonized System (HS) code
85176990
Technical details
Form factor
1U
Product colour
Black
Processor frequency
1250 MHz
Noise level
46.4 dB
Mean time between failures (MTBF)
720892 h
Rack mounting
Yes
Built-in processor
Yes
Ports & interfaces
SFP+ module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
12
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet
Security
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
RADIUS
DHCP features
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Multicast features
Multicast support
Yes
IPv6 multicast entries
2000
IPv4 multicast entries
2000
Memory
Packet buffer memory
16 MB
Internal memory
2048 MB
Design
Form factor
1U
Product colour
Black
LED indicators
PoE, Power, Status
Rack mounting
Yes
Indication
LED indicators
PoE, Power, Status
Power
Power consumption (typical)
37.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Heat dissipation
129.39 BTU/h
Weight & dimensions
Width
440 mm
Depth
100 mm
Height
43.2 mm
Weight
1.75 kg
Logistics data
Harmonized System (HS) code
85176990
