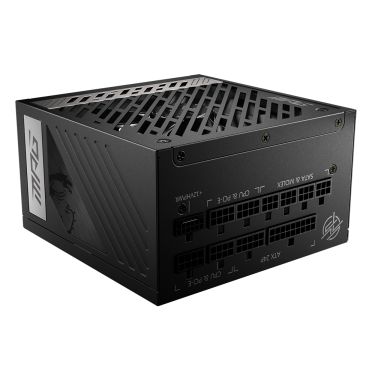

MSI MPG A1000G PCIE5 power supply unit 1000 W 20+4 pin ATX ATX Black
In Stock
|
£131.15
£157.38 (Inc. VAT)
MSI MPG A1000G PCIE5 power supply unit 1000 W 20+4 pin ATX ATX Black
Cooling
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Cooling type
Active
Design
80 PLUS certification
80 PLUS Gold
Product colour
Black
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Illumination
No
Cooling type
Active
Power
Total power
1000 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
120 W
Combined power (+12V)
1000 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
22 A
Max output current (+12V)
83.5 A
Max output current (+5V)
22 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current- Over power- Over voltage- Overheating- Short circuit- Under voltage
Efficiency
90%
Ports & interfaces
Motherboard power cable length
60 cm
SATA power cable length
500-650-700-850 mm
Peripheral (Molex) power cable length
1100-500-650-700-850 mm
PCI Express power cable length
75 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
12
Peripheral (Molex) power connectors (4-pin)
4
EPS power connector (8-pin)
No
PCI Express power connectors (6+2 pin)
6
Floppy disk drive connector
Yes
Cabling type
Modular
EPS power connector (4+4 pin)
Yes
EPS cable length
70 cm
PCI Express power connectors (16-pin)
1
Performance
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Purpose
PC/Server
ATX version
3.0
Bearing technology
FDB
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Certificates
80 PLUS certification
80 PLUS Gold
Other features
EPS cable length
70 cm
