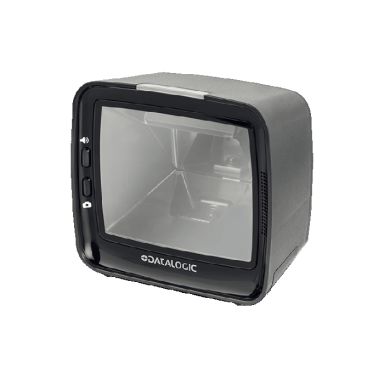

Datalogic M3410-010200-00604 barcode reader Built-in bar code reader 1D/2D Grey
In Stock
|
£298.26
£357.91 (Inc. VAT)
Datalogic M3410-010200-00604 barcode reader Built-in bar code reader 1D/2D Grey
Scanning
Type
Built-in bar code reader
Linear (1D) barcodes supported
GS1 DataBar
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, GS1 Databar RSS14 Stacked, MicroPDF417, PDF417, QR Code
Yaw reading angle
0 - 75°
Tilt reading angle
0 - 360°
Scanner type
1D/2D
Read rate (max)
30000000 reads/s
Pitch reading angle
0 - 65°
Light levels (direct sunlight)
0 - 86100 lx
Optical sensor resolution (W x H)
1280 x 800 pixels
Ports & interfaces
Connectivity technology
Wired
Standard interfaces
RS-232, USB
Performance
LED indicators
Yes
International Protection (IP) code
IP52
Product colour
Grey
Image formats supported
BMP, JPEG
Compatible memory cards
MicroSD (TransFlash)
Print contrast
25%
Light levels (direct sunlight)
0 - 86100 lx
Design
Type
Built-in bar code reader
LED indicators
Yes
International Protection (IP) code
IP52
Product colour
Grey
Power
Power source type
AC, DC, USB
Power consumption (typical)
1.6 W
Input frequency
50-60 Hz
Power consumption (standby)
0.95 W
Input voltage
100 - 240 V
Weight & dimensions
Width
137 mm
Depth
152 mm
Height
94 mm
Weight
600 g
Technical details
Type
Built-in bar code reader
LED indicators
Yes
International Protection (IP) code
IP52
Product colour
Grey
Sustainability compliance
Yes
Sustainability certificates
RoHS
Compliance certificates
RoHS
Packaging data
Cables included
USB
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Light levels (direct sunlight)
0 - 86100 lx
Packaging content
Cables included
USB
