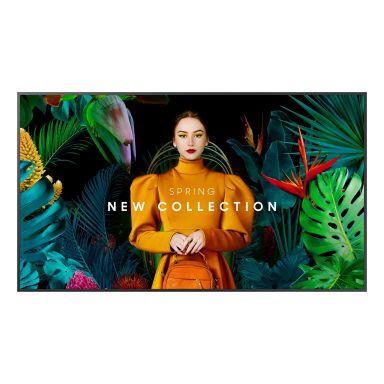

Samsung QHC QH75C Digital signage flat panel 190.5 cm (75") LCD Wi-Fi 700 cd/m² 4K Ultra HD Black Tizen 24/7
In Stock
|
£2065.10
£2478.12 (Inc. VAT)
Samsung QHC QH75C Digital signage flat panel 190.5 cm (75") LCD Wi-Fi 700 cd/m² 4K Ultra HD Black Tizen 24/7
Display
LED backlight
Yes
Panel type
VA
Dynamic contrast ratio marketing name
Mega Contrast
Touchscreen
No
Display technology
LCD
Colour gamut
72%
Display diagonal
190.5 cm (75")
Display resolution
3840 x 2160 pixels
Display brightness
700 cd/m²
HD type
4K Ultra HD
Response time
8 ms
Contrast ratio (typical)
4000:01:00
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.429 x 0.429 mm
Display diagonal (metric)
189 cm
Vertical scan range
48 - 75 Hz
Horizontal scan range
30 - 81 kHz
Haze rate
25%
Pixel frequency (max)
594 MHz
Ports & interfaces
DisplayPort version
1.2
USB port
Yes
DisplayPorts in
1
HDMI version
2
Infrared data port
Yes
Wi-Fi
Yes
DisplayPorts quantity
1
Ethernet LAN
Yes
HDMI ports quantity
3
DVI port
No
Audio (L/R) out
1
Ethernet LAN (RJ-45) ports
2
RS-232 interface
Yes
USB ports quantity
2
HDMI input ports quantity
3
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Bezel width (top)
1.34 cm
Bezel width (side)
1.34 cm
Bezel width (bottom)
1.34 cm
Product colour
Black
Panel mounting interface
400 x 400 mm
Certification
Class B
60950-1, 62368-1
VESA mounting
Yes
Screen shape
Flat
Bezel colour
Charcoal Black
Performance
Purpose
Universal
Operating hours (hours/days)
24/7
HDCP
Yes
HDCP version
2.2
Wi-Fi
Yes
Power
Power consumption (sleep)
0.5 W
Power consumption (typical)
275 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Computer system
Operating system installed
Tizen
Operating system version
7
Weight & dimensions
Display width
1682.3 mm
Display depth
28.5 mm
Display height
960.4 mm
Display weight
34.6 kg
Packaging data
Package width
1839 mm
Package depth
180 mm
Package height
1113 mm
Package volume
45300 cm³
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Certificates
Certification
Class B
60950-1, 62368-1
Technical details
VESA mounting
Yes
Panel type
VA
DisplayPort version
1.2
DisplayPorts in
1
Thin Client
Operating system installed
Tizen
Features
Suitable for indoor use
Yes
Other features
Panel type
VA
DisplayPort version
1.2
DisplayPorts in
1
Wi-Fi
Yes
Flash memory
16000 MB
Display technology
LCD
Bluetooth
Yes
Bezel width (top)
1.34 cm
Bezel width (side)
1.34 cm
Bezel width (bottom)
1.34 cm
Optional features
WMN-B50SC
STN-L6585C
