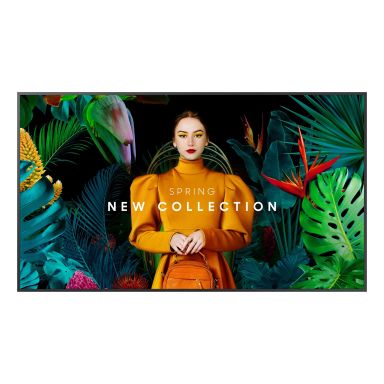

Samsung QBC QB75C Digital signage flat panel 190.5 cm (75") LCD Wi-Fi 350 cd/m² 4K Ultra HD Black Built-in processor Tizen 7.0 16/7
In Stock
|
£1527.43
£1832.92 (Inc. VAT)
Samsung QBC QB75C Digital signage flat panel 190.5 cm (75") LCD Wi-Fi 350 cd/m² 4K Ultra HD Black Built-in processor Tizen 7.0 16/7
Display
Panel type
VA
Dynamic contrast ratio marketing name
Mega Contrast
Touchscreen
No
Display technology
LCD
Display diagonal
190.5 cm (75")
Display resolution
3840 x 2160 pixels
Display brightness
350 cd/m²
HD type
4K Ultra HD
Response time
8 ms
Contrast ratio (typical)
4000:01:00
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.429 x 0.429 mm
Vertical scan range
48 - 75 Hz
Horizontal scan range
30 - 81 kHz
Haze rate
2%
RGB colour space
NTSC
Pixel frequency (max)
594 MHz
Ports & interfaces
Remote (IR) input
1
USB port
Yes
HDMI version
2
Infrared data port
Yes
Wi-Fi
Yes
DisplayPorts quantity
0
Ethernet LAN
Yes
HDMI ports quantity
3
DVI port
No
Ethernet LAN (RJ-45) ports
1
RS-232 interface
Yes
USB ports quantity
2
HDMI input ports quantity
3
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Bezel width (top)
1.34 cm
Bezel width (side)
1.34 cm
Bezel width (bottom)
1.34 cm
Product colour
Black
Panel mounting interface
400 x 400 mm
Certification
Class B
Class B60950-1, 62368-1
VESA mounting
Yes
Mounting type
Wall
Screen shape
Flat
Bezel colour
Charcoal Black
Performance
Purpose
Universal
Operating hours (hours/days)
16/7
HDCP
Yes
HDCP version
2.2
Wi-Fi
Yes
Power
Power consumption (sleep)
0.5 W
Power consumption (typical)
214.5 W
AC input voltage
100-240 V
AC input frequency
50-60 Hz
Energy efficiency scale
A to G
Computer system
Computer system
Yes
Computer system type
System on Chip (SoC)
Operating system installed
Tizen
Built-in processor
Yes
Operating system version
7
Weight & dimensions
Display width
1682.3 mm
Display depth
28.5 mm
Display height
960.4 mm
Display weight
33.4 kg
Packaging data
Package width
1839 mm
Package depth
180 mm
Package height
1113 mm
Package weight
41.5 kg
Packaging content
Stand included
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Certificates
Certification
Class B
Class B60950-1, 62368-1
Technical details
VESA mounting
Yes
Stand included
No
Panel type
VA
RJ-45 input ports
1
RS-232 output ports
1
RS-232 input ports
1
Audio out (mini jack)
1
Thin Client
Operating system installed
Tizen
Other features
Stand included
No
Panel type
VA
RJ-45 input ports
1
RS-232 output ports
1
RS-232 input ports
1
Wi-Fi
Yes
Flash memory
8000 MB
Display technology
LCD
Bluetooth
Yes
Bezel width (top)
1.34 cm
Bezel width (side)
1.34 cm
Bezel width (bottom)
1.34 cm
Energy efficiency scale
A to G
Optional features
WMN-B50SC
STN-L6585C
