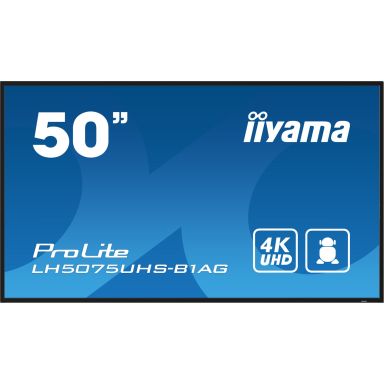

iiyama LH5075UHS-B1AG Signage Display Digital signage flat panel 125.7 cm (49.5") LCD Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7
In Stock
|
£674.33
£809.20 (Inc. VAT)
iiyama LH5075UHS-B1AG Signage Display Digital signage flat panel 125.7 cm (49.5") LCD Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7
Display
Panel type
IPS
Display number of colours
1.07 billion colours
Touchscreen
No
Active display area (W x H)
1095.8 x 616.4 mm
Display technology
LCD
Display diagonal
125.7 cm (49.5")
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Response time
9.5 ms
Contrast ratio (typical)
5000:01:00
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.285 x 0.285 mm
Display diagonal (metric)
125.7 cm
Native aspect ratio
16:09
Horizontal scan range
28 - 160 kHz
Maximum frame rate
60 fps
Haze rate
25%
RGB colour space
sRGB
Ports & interfaces
Remote (IR) output
1
Remote (IR) input
1
DisplayPort version
1.2
USB port
Yes
HDMI version
2
RS-232C
Yes
Wi-Fi standards
Wi-Fi 5 (802.11ac)
Wi-Fi
Yes
PC Audio in
Yes
DisplayPorts quantity
1
Compatible memory cards
MicroSD (TransFlash)
Card reader integrated
Yes
Ethernet LAN
Yes
HDMI ports quantity
3
VGA (D-Sub) input ports
0
Ethernet LAN (RJ-45) ports
1
USB version
2
USB ports quantity
2
Audio
Number of built-in speakers
2
RMS rated power
20 W
Built-in speaker(s)
Yes
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Orientation
Horizontal/Vertical
Housing material
Metal
Bezel width (top)
1.49 cm
Bezel width (side)
1.49 cm
Bezel width (bottom)
1.49 cm
Product colour
Black
Panel mounting interface
400 x 400 mm
Certification
CB, CE, TÃV-Bauart, EAC, ErP, WEEE, REACH
VESA mounting
Yes
Performance
Purpose
Universal
Operating hours (hours/days)
24/7
Mean time between failures (MTBF)
44000 h
On Screen Display (OSD) languages
Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Swedish
On Screen Display (OSD)
Yes
Number of OSD languages
15
HDCP
Yes
HDCP version
2.2
Wi-Fi
Yes
Power
Power consumption (off)
0.3 W
Power consumption (typical)
112 W
Power consumption (standby)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Energy efficiency scale
A to G
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
112 kWh
Computer system
Processor cores
4
Processor family
ARM Cortex
Operating system installed
Android 11
Internal memory
4 GB
Internal storage capacity
32 GB
Processor manufacturer
ARM
Built-in processor
Yes
On-board graphics card model
ARM Mali-G52
Processor architecture
ARM Cortex-A53+Cortex-A73
Weight & dimensions
Display width
1122.7 mm
Display depth
55 mm
Display height
643.6 mm
Display weight
11.8 kg
Packaging data
Package width
1261 mm
Package depth
132 mm
Package height
761 mm
Package weight
16.2 kg
Quick start guide
Yes
Batteries included
Yes
Remote control included
Yes
Cables included
AC, HDMI, RS-232
Packaging content
Quick start guide
Yes
Batteries included
Yes
Remote control included
Yes
Cables included
AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Certificates
Certification
CB, CE, TÃV-Bauart, EAC, ErP, WEEE, REACH
Technical details
VESA mounting
Yes
Panel type
IPS
DisplayPort version
1.2
Compliance certificates
RoHS
Thin Client
Processor family
ARM Cortex
Operating system installed
Android 11
Internal memory
4 GB
Internal storage capacity
32 GB
Logistics data
Harmonized System (HS) code
85285210
Features
Harmonized System (HS) code
85285210
Other features
Panel type
IPS
DisplayPort version
1.2
Housing material
Metal
Wi-Fi standards
Wi-Fi 5 (802.11ac)
Wi-Fi
Yes
Mean time between failures (MTBF)
44000 h
Display technology
LCD
Compatible memory cards
MicroSD (TransFlash)
Card reader integrated
Yes
Bezel width (top)
1.49 cm
Bezel width (side)
1.49 cm
Bezel width (bottom)
1.49 cm
Quick start guide
Yes
Energy efficiency scale
A to G
