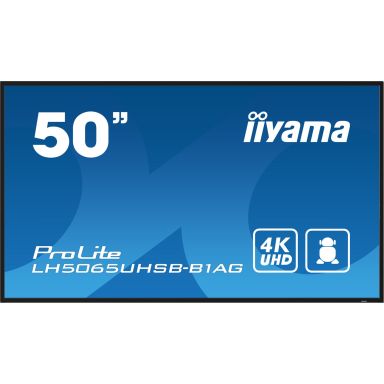

iiyama LH5065UHSB-B1AG Signage Display Digital signage flat panel 125.7 cm (49.5") LCD Wi-Fi 800 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7
In Stock
|
£632.25
£758.70 (Inc. VAT)
iiyama LH5065UHSB-B1AG Signage Display Digital signage flat panel 125.7 cm (49.5") LCD Wi-Fi 800 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7
Display
Panel type
VA
Display number of colours
1.07 billion colours
Touchscreen
No
Active display area (W x H)
1096 x 616.5 mm
Display technology
LCD
Display diagonal
125.7 cm (49.5")
Display resolution
3840 x 2160 pixels
Display brightness
800 cd/m²
HD type
4K Ultra HD
Response time
9.5 ms
Contrast ratio (typical)
5000:01:00
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.285 x 0.285 mm
Display diagonal (metric)
125.7 cm
Native aspect ratio
16:09
Horizontal scan range
28 - 160 kHz
Haze rate
25%
RGB colour space
NTSC
Ports & interfaces
DisplayPort version
1.2
USB port
Yes
HDMI version
2
RS-232C
Yes
Wi-Fi standards
Wi-Fi 5 (802.11ac)
Wi-Fi
Yes
DisplayPorts quantity
1
Ethernet LAN
Yes
HDMI ports quantity
2
Audio (L/R) in
1
Ethernet LAN (RJ-45) ports
1
RS-232 interface
Yes
USB version
2
USB ports quantity
2
Audio
Number of built-in speakers
2
RMS rated power
20 W
Built-in speaker(s)
Yes
Design
Product design
Digital signage flat panel
Orientation
Horizontal/Vertical
Bezel width (top)
1.35 cm
Bezel width (side)
1.32 cm
Bezel width (bottom)
1.35 cm
Product colour
Black
Panel mounting interface
400 x 400 mm
Certification
CE, TÃV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
VESA mounting
Yes
Bezel colour
black, glossy
Performance
Purpose
Commercial
Operating hours (hours/days)
24/7
Mean time between failures (MTBF)
50000 h
On Screen Display (OSD) languages
Simplified Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Slovenian
Wi-Fi
Yes
Power
Power consumption (off)
0.3 W
Power consumption (typical)
65 W
Power consumption (standby)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
65 kWh
Computer system
Computer system
Yes
Processor cores
8
Processor family
ARM Cortex
Operating system installed
Android 11
Internal memory
4 GB
Internal storage capacity
32 GB
Processor manufacturer
ARM
Built-in processor
Yes
On-board graphics card model
ARM Mali-G52
Processor architecture
ARM Cortex-A53+Cortex-A73
Weight & dimensions
Display width
1127.6 mm
Display depth
55 mm
Display height
643.5 mm
Display weight
11.3 kg
Packaging data
Package width
1370 mm
Package depth
156 mm
Package height
860 mm
Package weight
14.8 kg
Cables included
HDMI, Power, RS-232
Packaging content
Cables included
HDMI, Power, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
-20.6
Certificates
Certification
CE, TÃV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
Technical details
VESA mounting
Yes
Panel type
VA
DisplayPort version
1.2
Thin Client
Processor family
ARM Cortex
Operating system installed
Android 11
Internal memory
4 GB
Internal storage capacity
32 GB
Other features
Panel type
VA
DisplayPort version
1.2
Wi-Fi standards
Wi-Fi 5 (802.11ac)
Wi-Fi
Yes
Mean time between failures (MTBF)
50000 h
Display technology
LCD
Bezel width (top)
1.35 cm
Bezel width (side)
1.32 cm
Bezel width (bottom)
1.35 cm
Energy efficiency scale
A to G
