HPE Aruba Networking Aruba Instant On 1960 12XGT 4SFP+ Managed L2+ 10G Ethernet (100/1000/10000) 1U White
In Stock
|
£595.35
£714.42 (Inc. VAT)

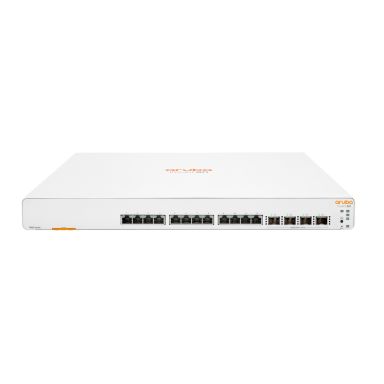

HPE Aruba Networking Aruba Instant On 1960 12XGT 4SFP+ Managed L2+ 10G Ethernet (100/1000/10000) 1U White
Management features
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
Switch layer
L2+
Cloud-managed
Yes
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
12
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Network
Auto-sensing
Yes
Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
IGMP snooping
Yes
IPv6 FIB entries
512
IPv4 FIB entries
512
Data transmission
Jumbo frames
9216
Throughput
238 Mpps
Latency (10-100 Mbps)
Latency (1 Gbps)
Latency (10 Gbps)
Packet buffer memory
3 MB
MAC address table
16000 entries
Switching capacity
320 Gbit/s
Jumbo frames support
Yes
Security
Authentication
Port-based authentication
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
RADIUS
DHCP features
DHCP snooping
Multicast features
Multicast support
Yes
Protocols
IPv6 FIB entries
512
IPv4 FIB entries
512
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL)
Design
Form factor
1U
Product colour
White
Stackable
Yes
Rack mounting
Yes
Performance
Physical stacking (units)
4
Processor frequency
2000 MHz
Internal memory
1000 MB
Flash memory
512 MB
Built-in processor
Yes
Processor model
ARM Cortex-A9
Packet buffer memory
3 MB
Stackable
Yes
Harmonized System (HS) code
85176990
Power
Power consumption (max)
160 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
Storage relative humidity (H-H)
15 - 90%
Operating temperature (T-T)
Operating relative humidity (H-H)
15 - 95%
Operating altitude
0 - 3000 m
Virtual LAN features
VLAN support
Yes
Weight & dimensions
Width
350.5 mm
Depth
442.5 mm
Height
44 mm
Weight
4.3 kg
IPv4 & IPv6 features
IPv6 FIB entries
512
IPv4 FIB entries
512
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL)
Technical details
Physical stacking (units)
4
Form factor
1U
Product colour
White
Stackable
Yes
Processor frequency
2000 MHz
Rack mounting
Yes
Built-in processor
Yes
Memory
Packet buffer memory
3 MB
Internal memory
1000 MB
Flash memory
512 MB
Logistics data
Harmonized System (HS) code
85176990
