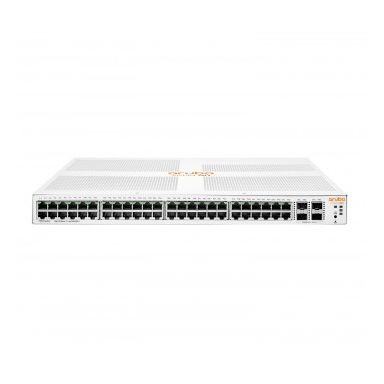

HPE Aruba Instant On 1930 Managed L2+ Gigabit Ethernet
In Stock
|
HPE Aruba Instant On 1930 Managed L2+ Gigabit Ethernet
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
IGMP snooping
Yes
Auto-sensing
Yes
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
256
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
256
Data transmission
Number of VLANs
256
Throughput
130.95 Mpps
Latency (10-100 Mbps)
4.5 µs
Latency (1 Gbps)
2.2 µs
Latency (10 Gbps)
1.2 µs
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
176 Gbit/s
Performance
Packet buffer memory
1.5 MB
Stackable
No
Processor frequency
800 MHz
Memory type
SDRAM
Internal memory
512 MB
Flash memory
256 MB
Processor model
ARM Cortex-A9
Technical details
Form factor
1U
Product colour
White
Stackable
No
Processor frequency
800 MHz
Rack mounting
Yes
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2+
Security
SSH/SSL support
Yes
IGMP snooping
Yes
Memory
Packet buffer memory
1.5 MB
Memory type
SDRAM
Internal memory
512 MB
Flash memory
256 MB
Design
Form factor
1U
Product colour
White
Stackable
No
Rack mounting
Yes
Power
Power consumption (max)
36.9 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
15 - 95%
Weight & dimensions
Width
442.5 mm
Depth
282.4 mm
Height
43.9 mm
Weight
3.13 kg
