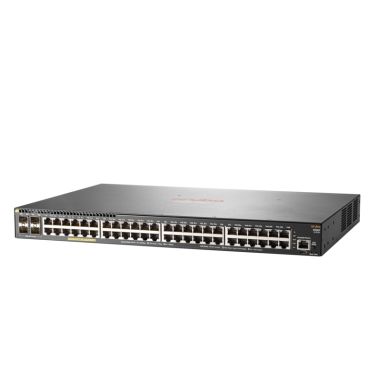

HPE Aruba Networking 2930F 48G PoE+ 4SFP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet
In Stock
|
HPE Aruba Networking 2930F 48G PoE+ 4SFP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet
Management features
Traffic classification
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
Switch layer
L3
Ports & interfaces
SFP module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Network
Auto-sensing
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Routing entries
10000
Rate limiting
Yes
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
IGMP snooping
Yes
IPv6 FIB entries
5000
IPv4 FIB entries
10000
Data transmission
Throughput
77.4 Mpps
Latency (1 Gbps)
Packet buffer memory
12.38 MB
MAC address table
32768 entries
Switching capacity
104 Gbit/s
Jumbo frames support
Yes
Security
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server
Multicast features
Multicast support
Yes
Protocols
Routing protocols
IP
IPv6 FIB entries
5000
IPv4 FIB entries
10000
Design
Form factor
1U
Product colour
Grey
Stackable
Yes
Rack mounting
Yes
Performance
Processor frequency
1016 MHz
Memory type
DDR3-SDRAM
Internal memory
1024 MB
Built-in processor
Yes
Processor model
ARM Cortex-A9
Packet buffer memory
12.38 MB
Stackable
Yes
Harmonized System (HS) code
85176990
Power
Power consumption (max)
459 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
48.6 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
Operating temperature (T-T)
Operating relative humidity (H-H)
15 - 95%
Heat dissipation
1566 BTU/h
Virtual LAN features
VLAN support
Yes
Weight & dimensions
Width
442.5 mm
Depth
304.2 mm
Height
43.9 mm
Weight
4.46 kg
IPv4 & IPv6 features
IPv6 FIB entries
5000
IPv4 FIB entries
10000
Technical details
Form factor
1U
Product colour
Grey
Stackable
Yes
Processor frequency
1016 MHz
Rack mounting
Yes
Built-in processor
Yes
Memory
Packet buffer memory
12.38 MB
Memory type
DDR3-SDRAM
Internal memory
1024 MB
Logistics data
Harmonized System (HS) code
85176990
